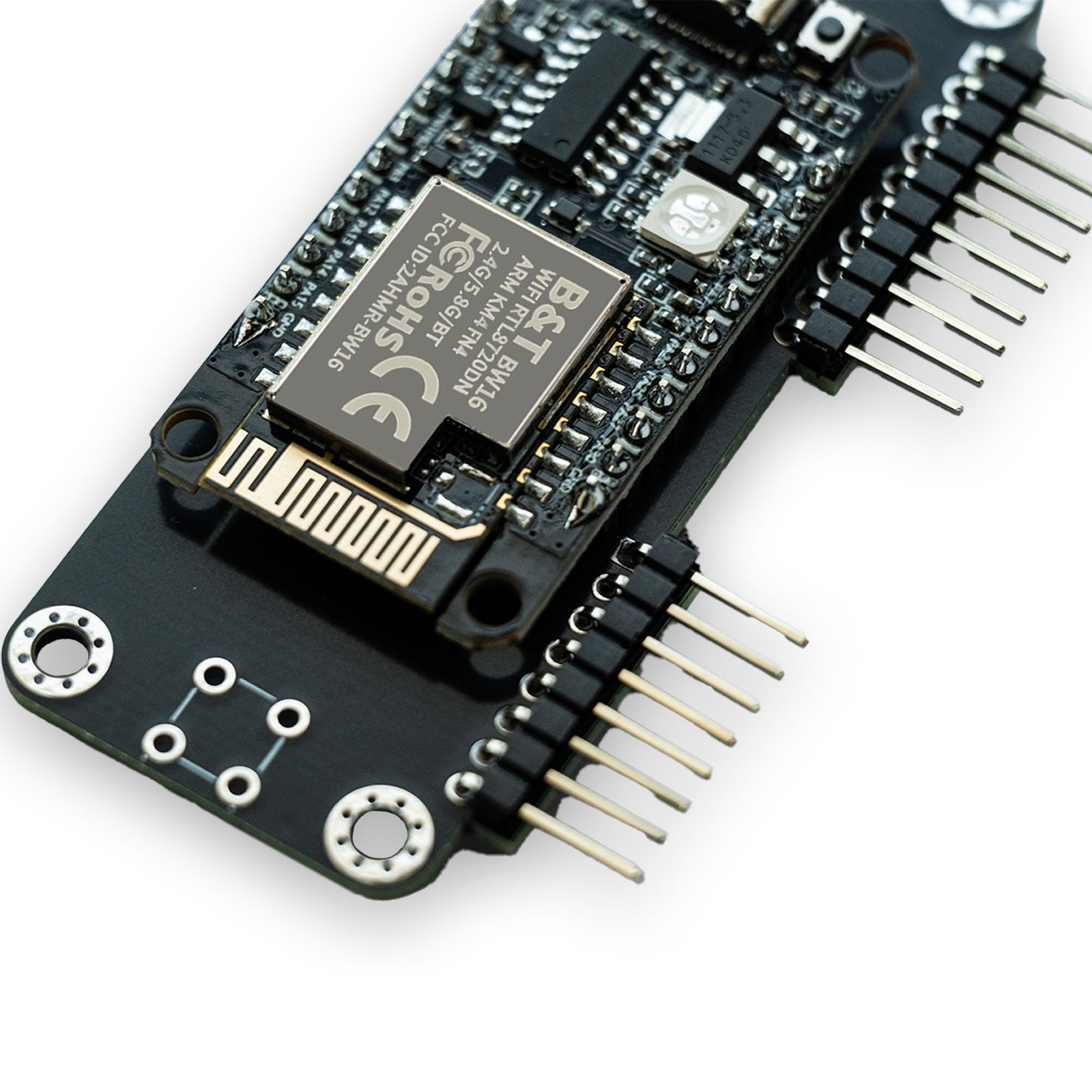

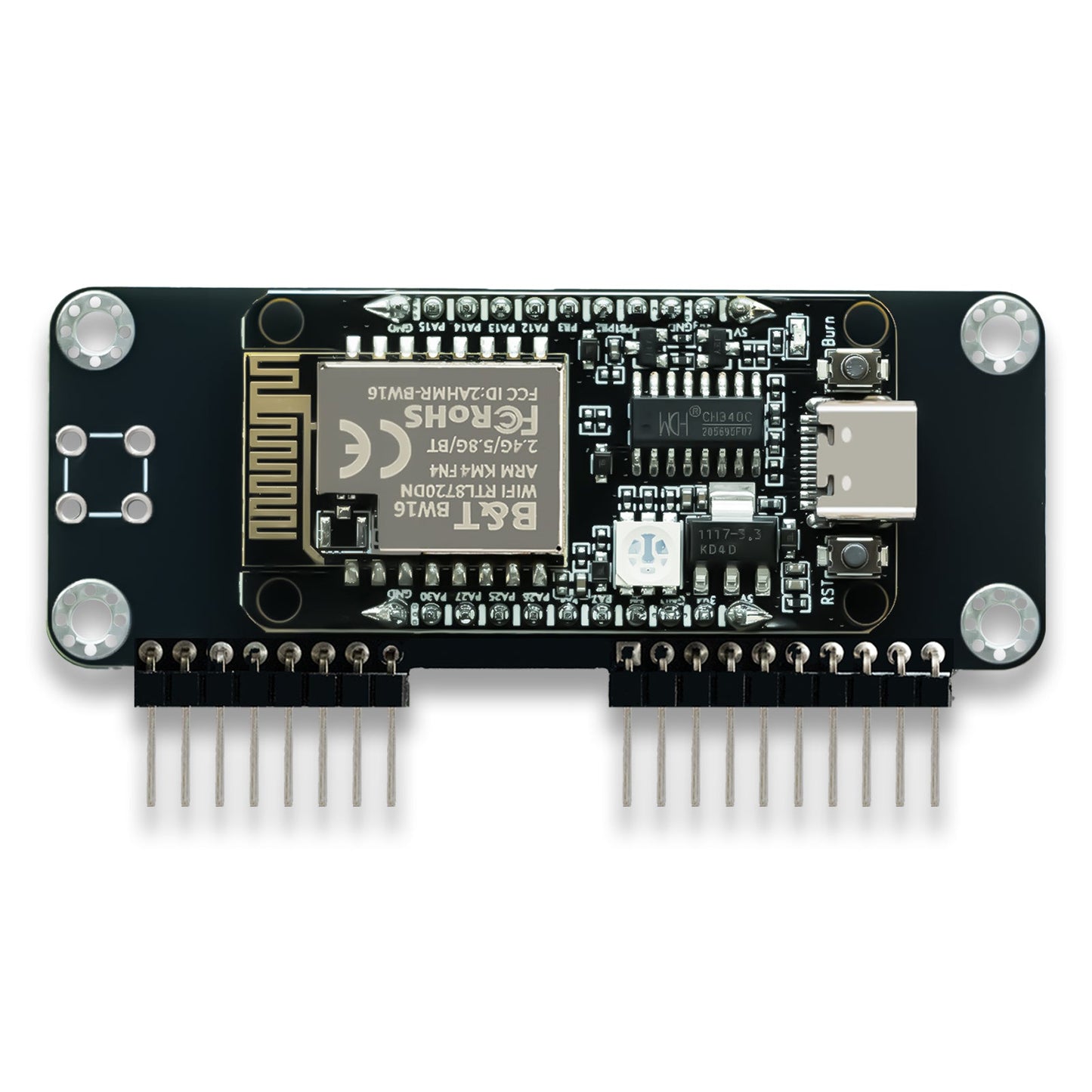

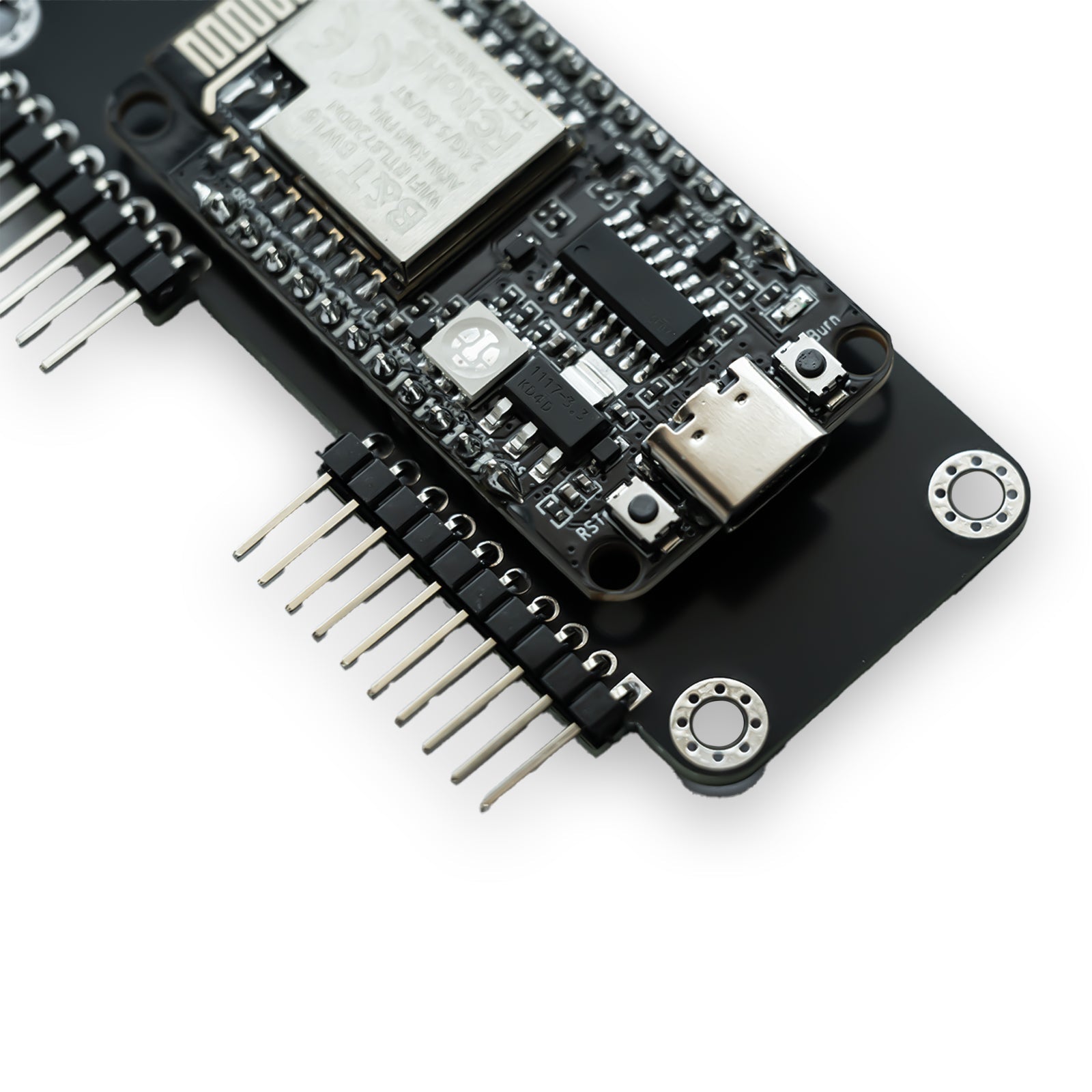

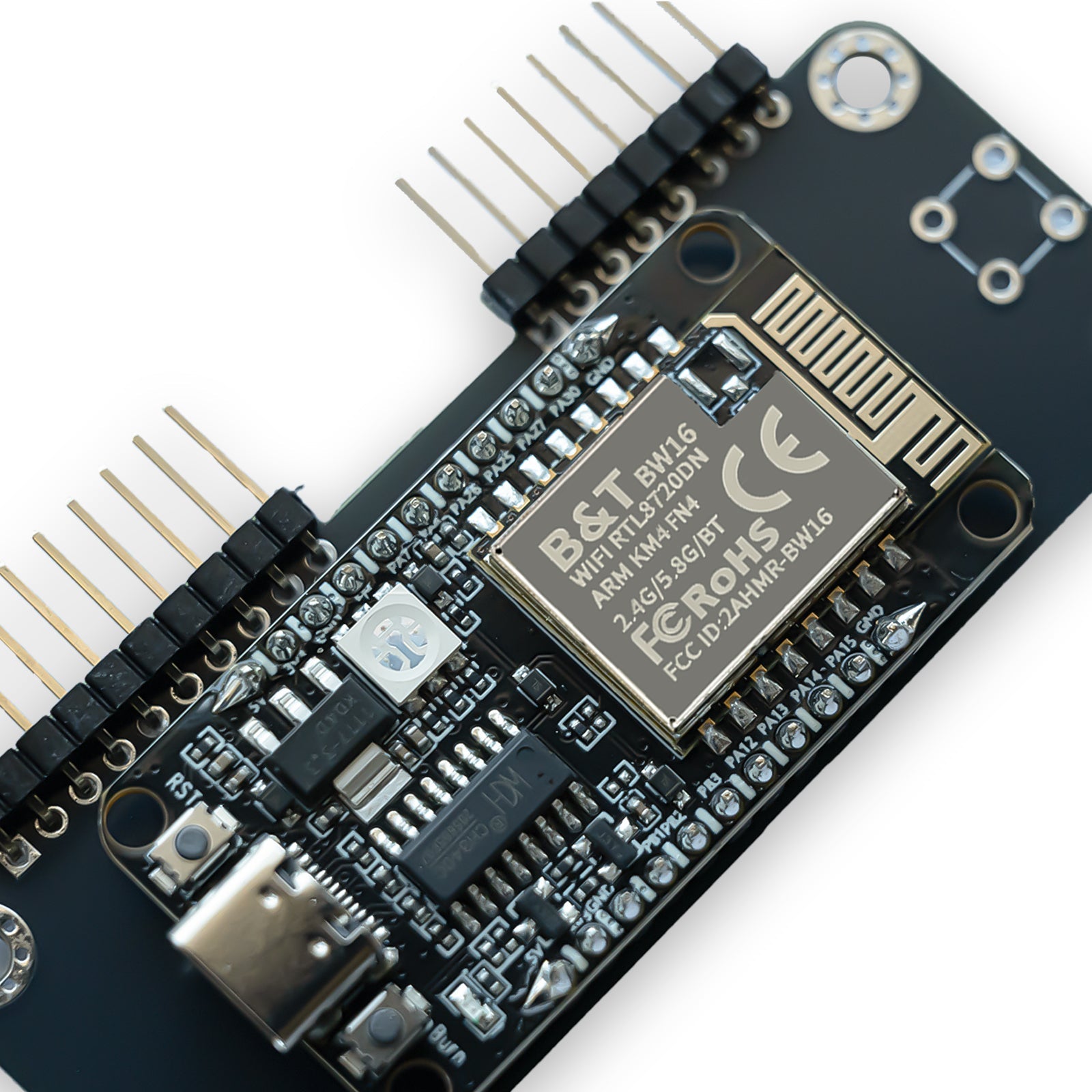

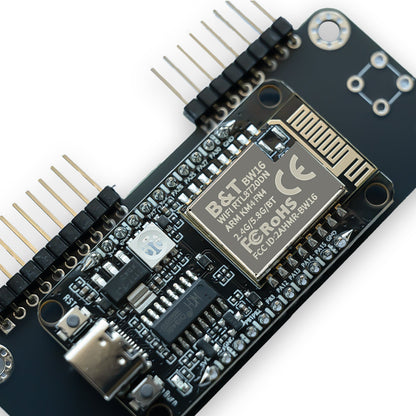

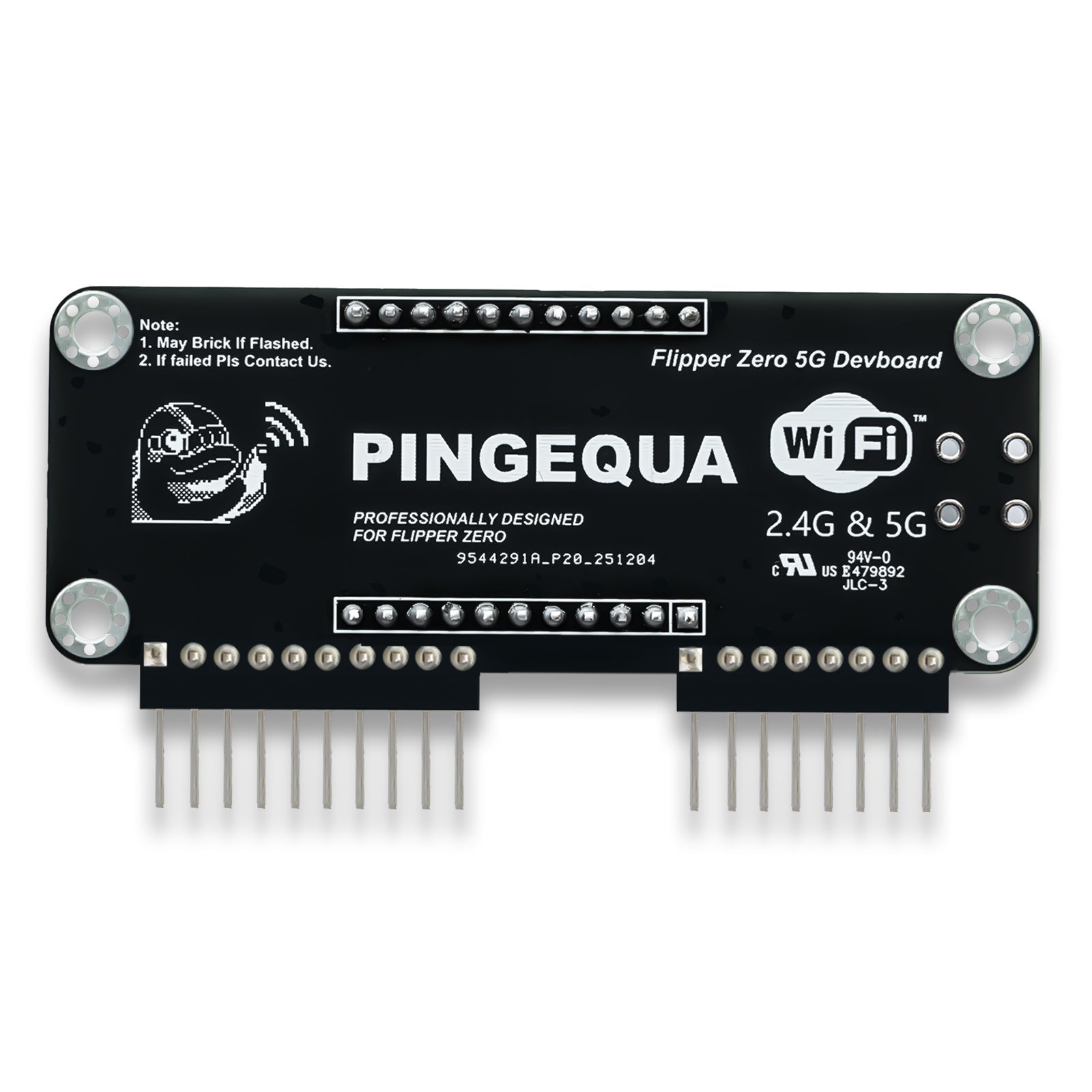

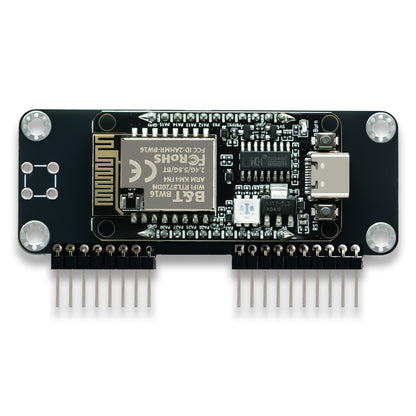

5Ghost WiFi Devboard for Flipper Zero – BW16 RTL8720DN Dual-Band

Name: 5Ghost WiFi Devboard for Flipper Zero – BW16 RTL8720DN Dual-Band
Brand: PINGEQUA
SKU: FZ-BW16-ANT

$44.99 USD

~~$49.98 USD~~ $44.99 USD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

Antenna Type External Antenna Onboard Antenna

PINGEQUA · Dual-band field auditor · App 2.7.4 · Firmware 2.7.3

5Ghost WiFi Devboard · BW16

Preloaded 2.4 + 5 GHz research for Flipper Zero. Dock GPIO. Copy one .fap.

5Ghost WiFi Lab is a dual-band 2.4 / 5 GHz Wi-Fi research tool for the Flipper Zero, built on the Realtek RTL8720DN (BW16) radio. It is a native Flipper app plus a preloaded companion board: scan both bands, run a Guided Audit (the app picks handshake or clientless PMKID), or drive those captures yourself, with PMF / WPA3 detection and BLE reconnaissance — for authorized security testing and education.

Quick answer Buy 5Ghost when you need reliable 2.4 + 5 GHz on Flipper, PMF-aware results, and a one-tap audit. Buy the official-class / PINGEQUA ESP32-S2 when you only want mature 2.4 GHz Marauder. Buy Scout Lite when the job is ESP32-C5 + GPS wardrive. 5 GHz is not exclusive to this chip — C5 boards can scan it too. Flipper Zero host not included.

Guided Audit. Under Channel Map: pick an AP; the app chooses handshake or clientless PMKID. Complete only if a quality-gated PCAP or .22000 lands.
Dual-band scan + Channel Map. 2.4 and 5 GHz with WPA3 / PMF flags, mesh tags, and the quietest channel marked.
Manual captures. Handshake on the 5 GHz path; clientless PMKID (beta) when no client is present.
BLE recon. Four tracker ecosystems + nearby Flippers, then GATT, iBeacon, and BadBLE HID. Official firmware does not expose a general BLE scanner to third-party apps.
PMF-aware deauth. Tells you which APs ignore management frames instead of failing silently. Multi-AP across SSIDs.
One .fap, three firmwares. Official · Momentum · Unleashed. Firmware 2.7.3 is enough; copy app 2.7.4.

Get the app (.fap) 2.7.4 → Browser flash / recovery (firmware 2.7.3) 5Ghost vs Marauder vs C5

// 01 · What's on the menu

Guided Audit is the task entry. Handshake and PMKID stay for experts.

Guided Audit is orchestration, not a new radio. Firmware 2.7.3 already on the board is enough.

Dual-band ScanLists 2.4 and 5 GHz APs with signal, encryption, precise PMF (capable / required), WPA3 detection, and same-SSID mesh markers.
Channel MapCongestion across both bands; footer shows Best 2.4G (1 / 6 / 11) and the least-busy 5 GHz channel actually seen. DFS can appear — receive-only.
Guided AuditMain menu, under Channel Map. Pick an AP; the app chooses handshake or clientless PMKID from PMF and whether stations are present. Results: Complete / Partial / Unsupported / Timeout / Blocked. Complete requires a quality-gated PCAP or .22000 plus audit_*.json.
Capture HandshakeWPA / WPA2 4-way over the 5 GHz path, written as PCAP for hashcat (mode 22000) / aircrack-ng. Manual path when you want to pick the capture yourself.
Capture PMKIDBeta. Clientless AUTHPROBE association — no client needed. Quality gate; only Valid PMKID writes .22000.
Station reconList clients on an AP you own or are authorized to test; scope deauth and handshake to one station.
BLE ScanPassive sweep: vendors, Apple AirTag / Tile / Samsung SmartTag / Google Find My, nearby Flipper Zeros, CSV export. Not a dedicated tracker product.
GATT · iBeacon · BadBLEConnect for GATT services; broadcast a spec iBeacon; type a BLE HID payload after the host pairs.
Evil Portal · Create APCaptive portal (built-in, bundled, or your HTML from SD). Create AP is joinable; Send Beacon is names only.
PMF-aware Deauth2.4 + 5 GHz. Flags 802.11w / WPA3-immune targets. Tick any mix of APs across SSIDs. DFS stays RX-only.
Evidence to SDCSV, PCAP, .22000, .json, audit_*.json, BLE logs under /ext/apps_data/5ghost/ with on-screen save confirmation.

5Ghost WiFi Lab home menu — Scan, BLE, iBeacon, BadBLE — Home · recon

5Ghost home capture page showing Channel Map and Guided Audit — Home · capture (Guided Audit)

Guided Audit Pick AP list on Flipper Zero — Guided Audit · pick AP

Guided Audit running a PMKID path on Flipper Zero — Guided Audit · run

Channel Map congestion bars for 2.4 GHz and 5 GHz — Channel Map

// 02 · How it works

A dual-band radio, driven by your Flipper.

Dock the GPIO header. Copy one app. Firmware 2.7.3 already on the board is enough for Guided Audit.

The Flipper Zero has no Wi-Fi radio of its own. This board adds a BW16 (RTL8720DN) dual-band radio, driven from the Flipper over GPIO UART by the 5Ghost WiFi Lab app. Nothing runs on a laptop during use.

FLIPPER ZERO — host, 128×64 UI
│ 5Ghost WiFi Lab .fap · app 2.7.4
│
▼ GPIO · UART (TX/RX) + 5V/GND
RTL8720DN (BW16) — preloaded firmware 2.7.3
├─ 2.4 GHz radio · 802.11 b/g/n
└─ 5 GHz radio · 802.11 a/n · handshake path · DFS RX-only

Choose the compact onboard PCB antenna ($39.99) or the 8 dBi external dual-band SMA ($44.99) for reach. Same board, same app, same firmware.

// 03 · How it compares

Pick by job. 5 GHz scan is not the same as a field audit.

ESP32-C5 (Apex 5, Scout Lite) can see 5 GHz. 5Ghost is the preloaded dual-band auditor with Guided Audit.

	Bare Flipper	Official / PINGEQUA ESP32-S2	Apex 5 (C5)	Scout Lite (C5+GPS)	5Ghost BW16 · this board
Bands	No Wi-Fi	2.4 GHz	2.4 + 5 GHz Wi-Fi 6	2.4 + 5 GHz Wi-Fi 6	2.4 + 5 GHz native
Preloaded for Flipper	—	PINGEQUA S2: yes	Marauder on C5	Marauder + GPS	Yes · dock and go
Native Flipper app	—	Marauder companion	Marauder companion	Marauder companion	5Ghost WiFi Lab
Guided Audit	No	No	No	No	Yes · app 2.7.4
PMF / WPA3 flags	—	Varies	Varies	Varies	Detects + alerts
BLE four-ecosystem trackers	No general BLE scanner for apps	Varies (Marauder BLE)	Varies	Varies	AirTag / Tile / SmartTag / Find My + nearby Flipper
GPS / WiGLE	No	No	Onboard GPS · WarDrive on V2 only	Yes · L86-M33	No — use Scout Lite
Price (2026-09-01)	Host only	Official $35 (sold out on flipper.net) · PINGEQUA $29.99	$79 on Tindie	$64.98	$39.99 onboard · $44.99 external

Sources dated 2026-09-01: PINGEQUA S2 $29.99 · Scout Lite $64.98 · flipper.net WiFi Devboard $35 sold out · Apex 5 Tindie $79. Deeper write-up: 5Ghost vs Marauder vs C5.

// 04 · Quick start

Pre-flashed — dock it and copy one file.

App 2.7.4 from GitHub. Board firmware 2.7.3 is enough — do not reflash just for Guided Audit.

Tighten the antenna, then dock. Power off the Flipper. On the external variant, thread the SMA first. Seat the board on the top GPIO header without tilting the pins, then power on.
Install the app. Download 5ghost_wifi_lab.fap 2.7.4 from GitHub Releases and copy it to /ext/apps/GPIO/ on the microSD card.
Scan, then audit. Open Apps → GPIO → 5Ghost WiFi Lab. Start with Scan Wi-Fi or Channel Map. For a capture, open Guided Audit (under Channel Map), pick an AP, wait. Files land in /ext/apps_data/5ghost/.

// 05 · Browser flashing & recovery

Module firmware recovery in the browser — no toolchain.

Normal setup needs no flashing. The picker stays on firmware 2.7.3.

If the board stops responding, or you are still on firmware 2.7.1, recover it from flash.pingequa.com/devices/bw16-5ghost in Chrome or Edge on desktop (Web Serial). Hold BOOT, tap RESET, release BOOT if auto-entry fails. FAP 2.7.4 does not require a reflash when the board is already on 2.7.3.

// 06 · Compatibility

Built for the PINGEQUA 5Ghost board.

Works with

Flipper Zero GPIO / UART
Official firmware
Momentum firmware
Unleashed firmware

Not a fit for

Standalone use — Flipper is the host
Other BW16 / RTL8720DN boards — not supported
GPS wardriving — that is Scout Lite

// 07 · Specifications

The numbers that matter.

Radio
Chipset	BW16 (RTL8720DN)
Wi-Fi bands	2.4 GHz + 5 GHz (dual-band). DFS channels receive-only
Bluetooth	BLE 5.0 — scan, GATT, iBeacon, HID
Antenna	Onboard PCB, or 8 dBi external dual-band SMA
Interface
Host link	Flipper Zero GPIO header · UART (TX/RX) + 5V/GND
Connector	18-pin GPIO
Software
Flipper app	5Ghost WiFi Lab (`5ghost_wifi_lab.fap`) 2.7.4, MIT — github.com/pingequalab/5ghost-wifi-lab
Module firmware	Pre-flashed 2.7.3 (browser re-flash available; picker 2.7.3)
Flipper firmwares	Official / Momentum / Unleashed · one universal .fap
Data export	CSV, PCAP, `.22000`, `.json`, `audit_*.json`, BLE logs → `/ext/apps_data/5ghost/`
In the box
Included	1 × 5Ghost BW16 (onboard-antenna or 8 dBi external variant)
Not included	Flipper Zero host (shown for reference)

// 08 · Honest limits

What it cannot do, stated clearly.

Overpromising creates refunds. Here is the actual boundary.

It does not crack WPA3-SAE. SAE has no offline-crackable hash. 5Ghost labels WPA3 / PMF instead of pretending otherwise.
PMF required ignores deauth. That is 802.11w working as designed, on any tool. The app tells you.
Clientless PMKID is beta. Not every AP includes a usable PMKID. Complete on Guided Audit is not a promise that an empty AP will yield a hash.
Handshake capture uses 5 GHz. This chip often cannot hear 2.4 GHz client uplink (M2/M4).
DFS is receive-only. EU scan includes DFS + channel 165; transmit tools will not use those channels (Unsupported on Guided Audit).
No GPS. For WiGLE wardrive, use Scout Lite. BLE tracker flags are a recon feature, not a dedicated anti-stalking product.
Third-party BW16 is not supported. Different firmware, pinout, and antenna.

// 09 · FAQ

Real questions, straight answers.

Q.01Can a Flipper Zero do 5 GHz Wi-Fi with this board?

Yes. The Flipper has no Wi-Fi radio of its own. 5Ghost adds a dual-band RTL8720DN (BW16) so you can scan, map, capture, and deauth on 2.4 GHz and 5 GHz. Classic ESP32 / S2 / S3 / C3 / C6 boards are 2.4 GHz only. ESP32-C5 boards can also see 5 GHz; 5Ghost's difference is native dual-band capture plus Guided Audit on a preloaded Flipper app, not chip exclusivity.

Q.02Do I have to flash the board first?

No. The module ships preloaded. Dock it on the Flipper GPIO header and copy one .fap to /ext/apps/GPIO/. Browser flashing at flash.pingequa.com/devices/bw16-5ghost is for recovery or a firmware update. Firmware 2.7.3 is enough for Guided Audit.

Q.03How do I use Guided Audit?

Open Apps → GPIO → 5Ghost WiFi Lab → Guided Audit (under Channel Map). Pick an AP and wait. The app chooses handshake or clientless PMKID from PMF and whether stations are present. Complete only if a quality-gated PCAP or .22000 file was written. Handshake and PMKID stay on the menu for manual use. Needs app 2.7.4; firmware 2.7.3 is enough.

Q.04Can it crack WPA3?

No. WPA3-SAE is designed so a captured handshake has no crackable offline hash. 5Ghost detects WPA3 / PMF and tells you the target is out of reach. For WPA/WPA2 it captures a handshake PCAP or a clientless PMKID (beta) for offline tools such as hashcat.

Q.05Is clientless PMKID still beta?

Yes. Capture PMKID and the PMKID branch of Guided Audit are beta. The capture-to-hash path is verified; live-AP coverage still varies. Not every WPA2 AP includes a usable PMKID. Pure WPA3-SAE has no offline-crackable hash.

Q.06Does it work on third-party BW16 / RTL8720DN boards?

No. The app is built for the PINGEQUA 5Ghost board (firmware, pinout, antenna). Other BW16 boards are not supported and may not work.

Q.07What's the difference between app 2.7.4 and firmware 2.7.3?

The Flipper app 2.7.4 adds Guided Audit. Board firmware stays 2.7.3 (EU passive scan including DFS + channel 165; DFS is receive-only). Copy the new .fap from GitHub Releases; you do not need to reflash the board for this app.

Q.08Onboard antenna or the 8 dBi external one?

Same board, same firmware, same app. The onboard PCB antenna keeps the compact Flipper footprint ($39.99). The 8 dBi dual-band SMA antenna trades size for range ($44.99).

Q.09Which Flipper firmware do I need?

Official, Momentum, or Unleashed. One universal 5ghost_wifi_lab.fap build runs on all three.

Q.10Does it work without a Flipper Zero?

No. It is a companion module. The Flipper Zero is the host and is not included.

For authorized security testing, network administration, and education only. Only test networks and devices you own or have explicit written permission to test. Unauthorized interception or disruption of networks may violate applicable law in most jurisdictions. End users are solely responsible for compliance with all applicable laws and radio regulations — FCC Part 15 (US), CE / RED (EU), and local equivalents. PINGEQUA hardware is covered by a 6-month limited warranty against manufacturing defects; damage from incorrect wiring, overvoltage, short circuits, improper firmware flashing, or third-party software modifications is excluded. "Flipper Zero" is a trademark of Flipper Devices Inc.; this is an independent companion product and is not affiliated with or endorsed by Flipper Devices.
