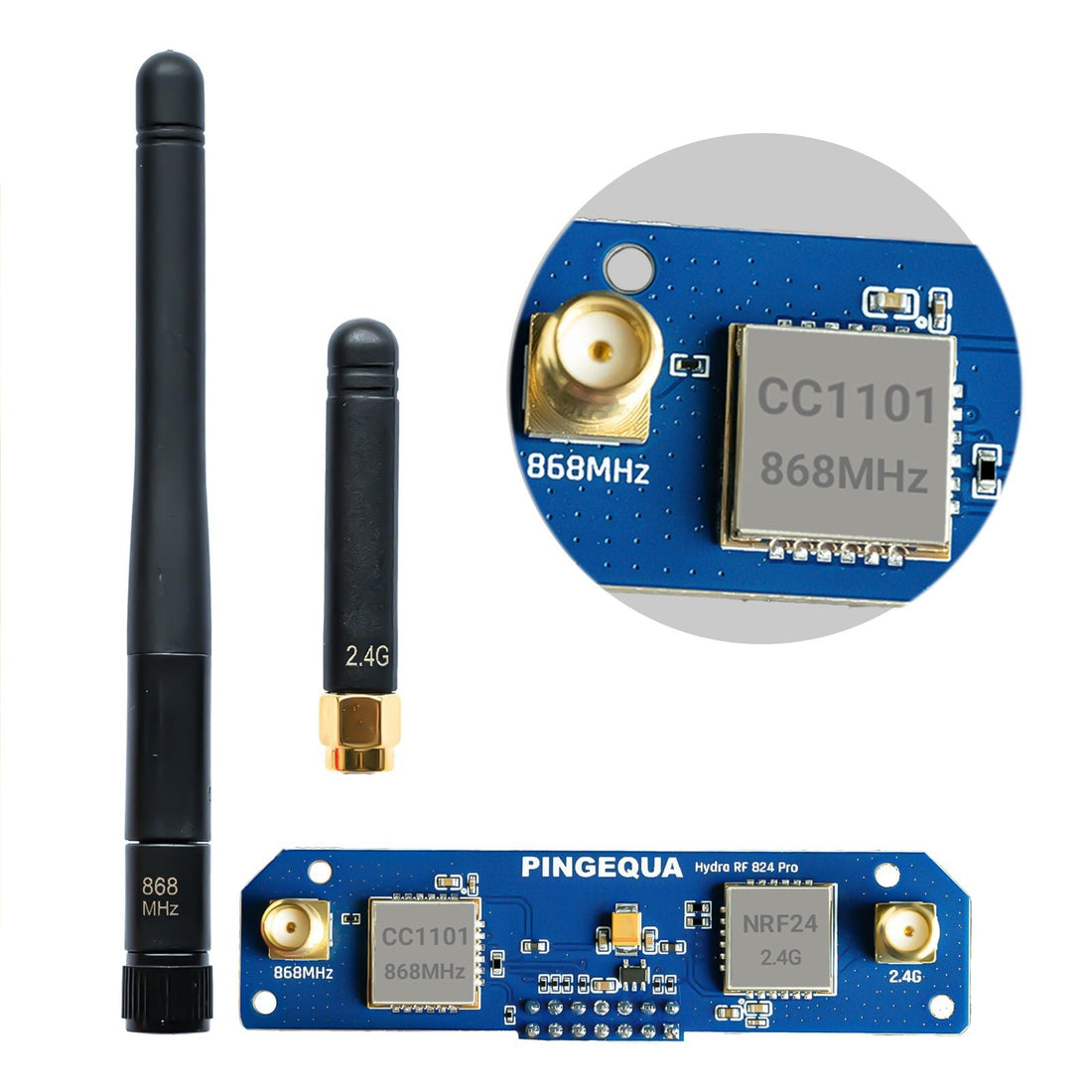

CC1101 cap for M5Stack Cardputer ADV

What Is a CC1101 Cap? Choosing the Right One for Your M5Stack Cardputer ADV & StickC

PINGEQUA Lab · M5Stack Cardputer RF Cap Buying Guide · 5 min read · Updated 2026-06-29

Picking the right "CC1101 cap" for your Cardputer or StickC comes down to two decisions: matching your exact M5Stack model, and choosing single-band Sub-GHz versus dual-band Sub-GHz + 2.4 GHz coverage.

Quick answerA "CC1101 cap" is a snap-on Sub-GHz RF expansion module (300–928 MHz) for M5Stack devices like the Cardputer ADV, StickC+ and StickS3; most caps sold today pair the CC1101 with an nRF24L01+ so you get Sub-GHz and 2.4 GHz on one board. For a Cardputer ADV, the Hydra RF 424 (433 MHz) covers the most common worldwide Sub-GHz band, with the Hydra RF 924 (915 MHz) as the North America ISM alternative — just be sure the cap you order is made for your specific device.

What does "cap" mean here?

In the M5Stack community, a "cap" (or "hat") is a hardware module that attaches directly to a device's header — no wiring, no breadboard. A CC1101 cap is therefore a ready-to-use Sub-GHz radio module that snaps onto your M5Stack device and is recognized by firmware like Bruce.

You'll see it written several ways — "cap cc1101", "CC1101 cap", "RF cap", "Hydra RF cap" — they all refer to the same category of snap-on Sub-GHz module.

What a CC1101 cap actually does

The CC1101 is a Sub-GHz transceiver. It operates below 1 GHz — in practice the 315 / 433 / 868 / 915 MHz bands where most everyday wireless devices live: garage doors, car key fobs, weather stations, TPMS, smart-home switches. A CC1101 cap lets your Cardputer or StickC receive and transmit in these bands for authorized RF research and learning.

A quality cap adds a PA/LNA amplifier stage (better range and receive sensitivity than a bare breakout) and a properly tuned antenna for the Sub-GHz band.

CC1101-only vs CC1101 + nRF24 cap — which do you need?

This is the decision most buyers get wrong. There are two kinds of "CC1101 cap":

CC1101-only cap CC1101 + nRF24 cap (dual-band)
Bands Sub-GHz only (300–928 MHz) Sub-GHz + 2.4 GHz
Covers Garage/car remotes, IoT sensors Above plus 2.4 GHz HID research
Best for You only care about Sub-GHz You want one cap that does everything
Limitation No 2.4 GHz at all Slightly higher price

Recommendation: unless you specifically only want Sub-GHz, a dual-band CC1101 + nRF24 cap is the better buy — the two chips cover non-overlapping bands, so a dual cap removes a permanent blind spot. (For the full chip-level explanation, see our CC1101 vs nRF24 guide.)

Which cap fits which device?

Caps are device-specific. The single most common return reason is buying a cap for the wrong M5Stack model.

Your device Correct cap
Cardputer ADV Hydra RF 424 (433 MHz) / Hydra RF 924 (915 MHz)
Cardputer v1.1 (original) Cardputer v1.1 3-in-1
StickC+ / StickC Plus 2 Stick RF 424
StickS3 RF Pack S3
Cardputer ADV is not the same as Cardputer v1.1. The ADV uses a different header and pin map. An ADV cap will not work on the original Cardputer and vice-versa. Check your exact model before ordering.

433 vs 868 vs 915 MHz — which frequency cap?

Band Region / use
433 MHz Most common worldwide; the default choice for most users
868 MHz common in the EU for certain devices
915 MHz North America ISM band

Pick the frequency that matches the devices you're researching and your region's allocation.

Quick Bruce setup

  1. Power off your device and attach the cap.
  2. Power on, open Bruce.
  3. Go to RF → Config → RF Module and select CC1101 on SPI.
  4. For the 2.4 GHz side on a dual cap, Bruce auto-switches to nRF24 for 2.4 GHz functions.

Full per-device steps: Cardputer ADV RF setup guide.

Get the right cap for your device

Dual-band CC1101 + nRF24 caps for Cardputer ADV, Cardputer v1.1, StickC+ and StickS3.

Hydra RF 424 (433 MHz) Hydra RF 924 (915 MHz) Cardputer v1.1 3-in-1

Frequently asked questions

Is "cap cc1101" the same as a CC1101 module?
Yes. "Cap" just means it's a snap-on module for an M5Stack device rather than a wired breakout. The radio chip inside is the same CC1101.
Does a CC1101 cap work on the original Cardputer and the Cardputer ADV?
No — they use different headers. Buy the cap made for your exact model. See the device-fit table above.
Do I need the nRF24 version?
If you ever want 2.4 GHz (e.g. wireless HID research), yes — a dual CC1101 + nRF24 cap covers both bands. Sub-GHz only? The CC1101-only cap is enough.
What's the difference between a CC1101 cap and a LoRa cap?
A CC1101 cap is a general Sub-GHz transceiver for short bursts (remotes, sensors). A LoRa cap uses a different chip optimized for long-range, low-data-rate links. They're not interchangeable.
Is using a CC1101 cap legal?
Owning and using one to test equipment you own or are authorized to assess is legal in most regions. Transmitting on licensed frequencies or against devices you don't own may not be. Always operate within local RF regulations (e.g. FCC Part 15 in the US).

Sources & further reading: CC1101 vs nRF24 — which one for Flipper & M5Stack · Cardputer ADV RF setup guide

Educational content for authorized RF research and IoT experimentation only — test devices you own or have explicit permission to assess, and comply with local RF regulations (e.g. FCC Part 15 in the US / CE-RED in the EU). PINGEQUA is an independent seller of RF modules and is not affiliated with M5Stack, Bruce, or Texas Instruments.
