GPS Module for Flipper Zero

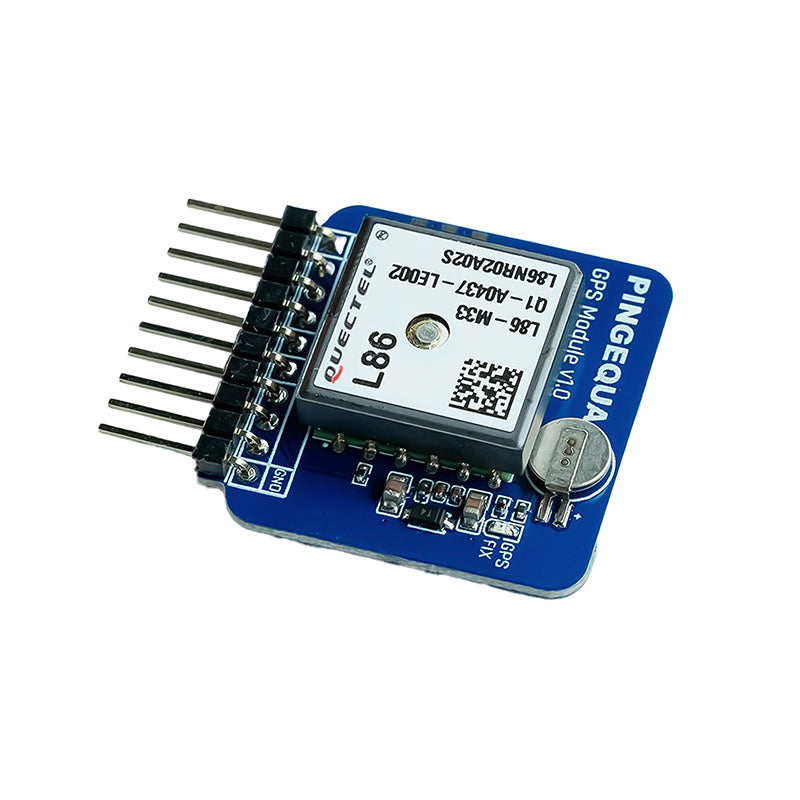

A small GPS add-on built on the Quectel L86-M33 that clips onto the Flipper GPIO header and works with the free GPS NMEA app right away. A built-in supercapacitor remembers your last fix, so most power-ups lock on in seconds instead of making you wait. It is receive-only — it listens to satellites and never transmits.
- Multi-GNSS. GPS, GLONASS, Galileo, QZSS + SBAS — more satellites, faster and steadier fixes.
- Fast restart. Built-in supercapacitor remembers your last fix; most power-ups lock in seconds.
- Works out of the box. Built-in antenna — no external antenna needed for normal use.
- Status light. An on-board LED shows you when the module is active.
- True plug-and-play. Sits on the Flipper's pins 13/14 — no wiring, no remapping.
- Antenna upgrade. Optional external-antenna spot for tough locations (SMA, solder-on).
Satellites up top, your position on the Flipper.

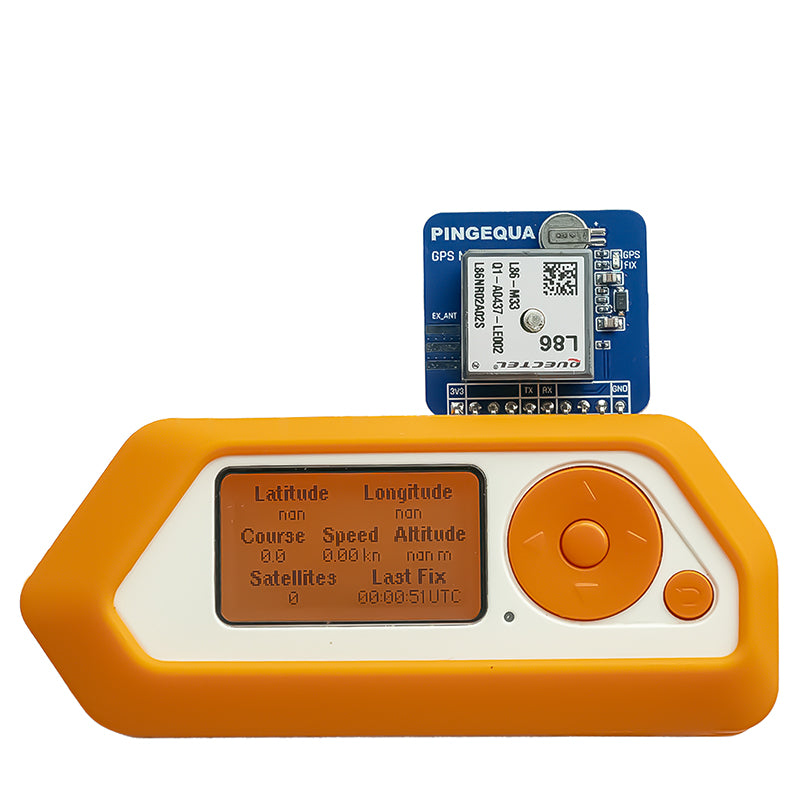

Your Flipper Zero has no GPS of its own. This module adds one: a built-in antenna picks up satellites, the L86-M33 works out your position, and it sends that to the Flipper over the GPIO pins. The GPS NMEA app turns it into a live location on screen. Nothing runs on a laptop — the Flipper is the host.
│
▼ built-in antenna picks them up
GPS MODULE · L86-M33 — supercapacitor keeps your last fix
│
▼ GPIO · UART (pins 13/14)
FLIPPER ZERO — GPS NMEA app shows your position
The whole install is: dock the board, install one free app, and step outside. No wiring, no soldering, no setup tricks.
More satellites, better fixes.
The module works with GPS, GLONASS, Galileo and QZSS, plus SBAS correction (WAAS, EGNOS, MSAS, GAGAN). In plain terms: it can “see” more satellites than a GPS-only receiver, which usually means a faster first fix and steadier positioning when you’re outdoors or surrounded by buildings.
No more waiting every time you power on.
Most basic GPS boards start from scratch every session, so you stand around waiting for that first fix. This board adds a supercapacitor that keeps your last position and satellite data alive for a while after you unplug — so the next power-up usually locks on in just a few seconds. And there’s no coin-cell battery to replace or leak; it charges itself whenever the board is powered.
Cold start, every single time
- Waits for a slow cold start at the beginning of every session
- Often needs a coin-cell battery to keep its memory — one more thing to replace
- No light to tell you whether it’s actually working
- Usually flying leads or an adapter to reach the Flipper
Remembers, restarts in seconds
- Supercapacitor keeps your last fix for fast warm/hot restarts
- No battery to swap or leak — it charges itself
- On-board LED shows when the module is active
- Clips straight onto the Flipper’s pins 13/14 — no wiring
Built-in antenna. Optional upgrade.
The built-in antenna handles everyday use — just take it outside and you’re good. For harder spots like metal enclosures or a car dashboard, the board has a place to add an external antenna for stronger reception. The connector isn’t installed at the factory: you solder on a standard SMA female connector (basic soldering), then plug in an active antenna. The board powers the antenna for you — no extra adapter needed.
- TypeActive GPS/GNSS antenna (not a passive one)
- ConnectorSMA male — board side is a standard SMA female, not RP-SMA
- Power3.3 V compatible (3–5 V is fine; avoid 5 V-only)
- BandsGPS L1 1575 MHz + GLONASS 1602 MHz — a multi-GNSS L1 antenna is best
- Fine printNoise figure < 1.5 dB, VSWR < 2 — most standard active antennas qualify
Three steps from box to first fix.
- Dock the board. Seat the module on your Flipper Zero GPIO header so it uses the standard pins

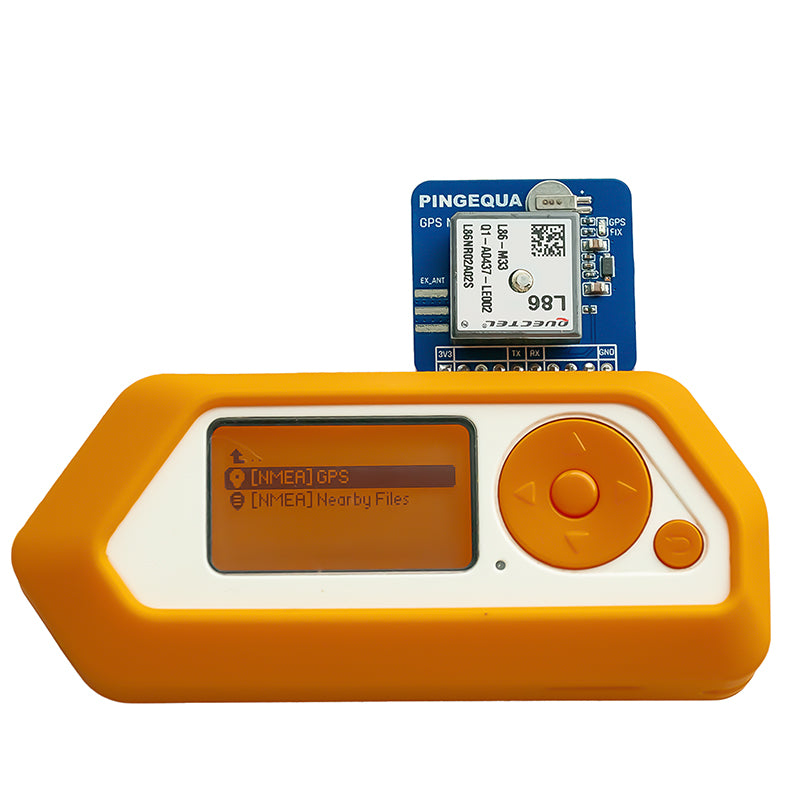

13/14, plus 3.3 V and GND. - Get the app. Install the free GPS NMEA app from the Flipper app catalog, or turn on the built-in GPS feature on Momentum firmware.

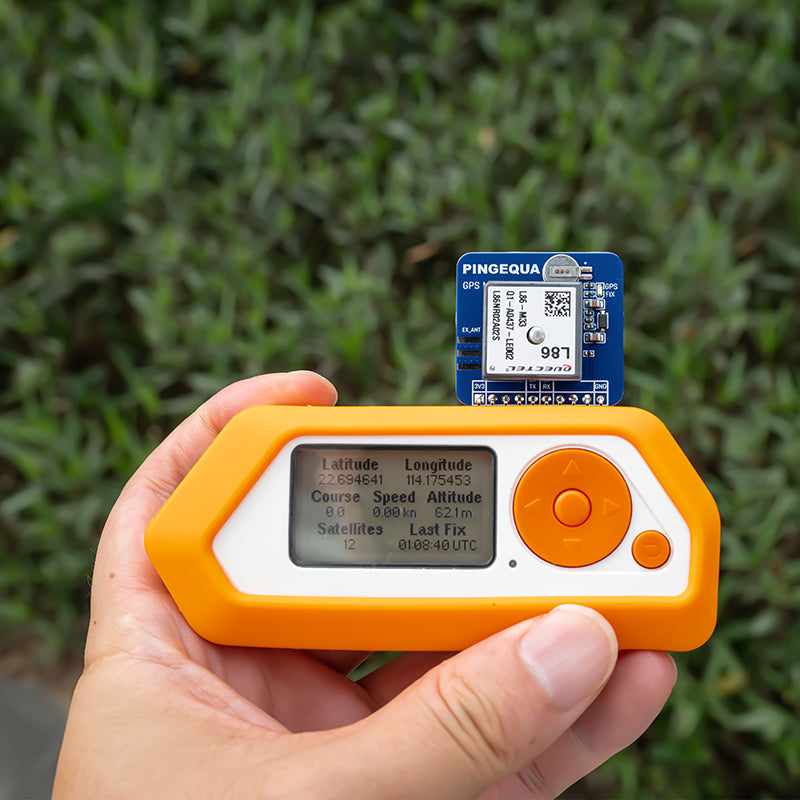

- Go outside. Open the app under open sky, away from windows and metal. The first fix can take a little while; after that, restarts are quick.
Built for one host: the Flipper Zero.
- Flipper Zero (GPIO / UART, pins 13/14)
- Official firmware
- Momentum firmware (built-in GPS)
- GPS NMEA app
- Standalone use — the Flipper Zero is the host
- Reliable positioning indoors (GPS needs open sky)
- Transmitting or interfering with signals — this module is receive-only
The numbers that matter.
| Positioning | |
| Module | Quectel L86-M33 (MediaTek MT3333) |
| Satellite systems | GPS, GLONASS, Galileo, QZSS + SBAS (WAAS / EGNOS / MSAS / GAGAN) |
| Sensitivity | −167 dBm tracking / −149 dBm acquisition |
| Channels | 99 acquisition / 33 tracking |
| Update rate | 1 Hz default, up to 10 Hz |
| Time to first fix (open sky) | ~1 s hot / ~5 s warm / ~15 s cold |
| Accuracy | < 2.5 m |
| Assisted GPS | EASY, up to 3 days of satellite data |
| Board | |
| Fast-restart backup | 0.22 F supercapacitor (no battery to replace) |
| Antenna | Built-in patch + optional external (SMA, not installed) |
| Status | On-board activity LED |
| Connection | UART, NMEA 0183 (standard GPS data format) |
| Power | 3.3 V from the Flipper GPIO header |
| Operating temperature | −40 °C to +85 °C |
| Compatibility | |
| Works with | Flipper Zero · GPS NMEA app |

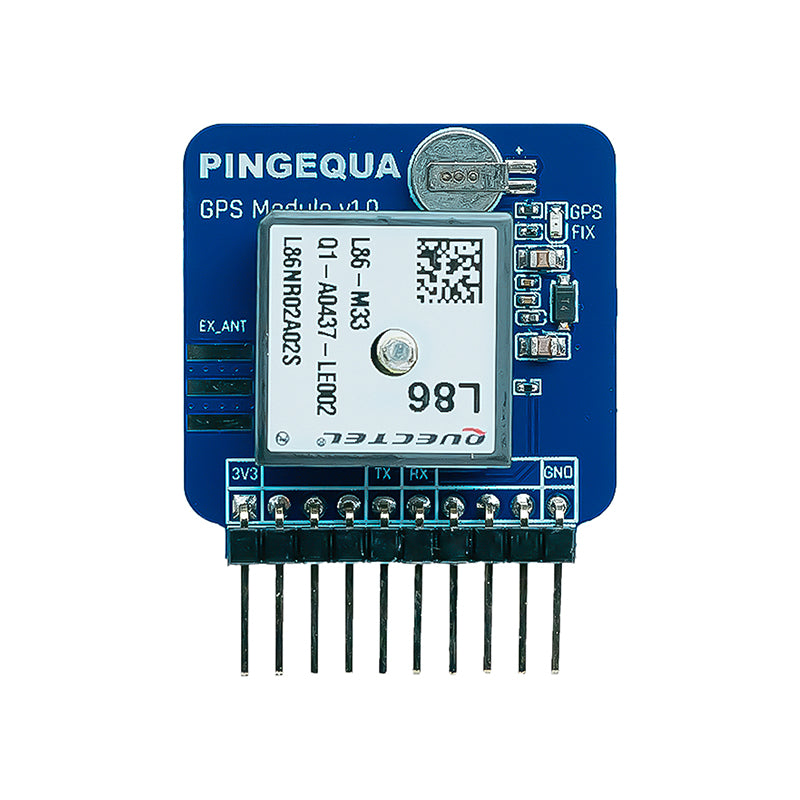

| Pins | Standard GPIO — pin 13 (TX), pin 14 (RX), 3.3 V, GND |
| Transmit | None — receive-only |
| In the box | |
| Included | 1 × GPS module + instruction manual |
| Not included | Flipper Zero · external SMA antenna |
What it can’t do, stated clearly.
- The first fix takes a moment. A first-ever start with no saved data needs a clear sky and can take ~15 s or more to lock — normal for any GPS, not a fault.
- It’s not for indoors. GPS signals are weak inside buildings; use it outdoors or by a window with open sky.
- The fast-restart memory isn’t forever. The supercapacitor holds for hours, not days; after long storage it does a normal (still quick) cold start again.
- The external antenna needs soldering. The SMA connector isn’t installed, and you supply the active antenna — it’s an optional upgrade for the harder spots.
- Receive-only. It listens to satellites and never transmits; it cannot transmit, alter, or interfere with signals.
Real questions, straight answers.
Q.01Which satellite systems does it support?
GPS, GLONASS, Galileo and QZSS, plus SBAS correction (WAAS, EGNOS, MSAS, GAGAN). Working with more systems helps it lock on faster and stay more reliable outdoors than a GPS-only receiver.
Q.02Which app and pins do I use?
Install the GPS NMEA app from the Flipper app catalog, or use the built-in GPS feature on Momentum firmware. The module uses the Flipper’s standard pins 13/14 — no wiring changes and nothing to remap.
Q.03My first fix takes a couple of minutes — is it broken?
No. The very first start with no saved data can take a little while under open sky, which is normal for any GPS. After that, the supercapacitor keeps your data alive between sessions, so later power-ups lock on much faster. Give it a clear view of the sky for that first fix, away from windows and metal.
Q.04Do I need an external antenna?
No. The built-in antenna handles normal handheld use. The external-antenna option is only for harsh spots like metal cases or vehicle dashboards. It ships without the connector installed, so it’s for users comfortable doing a bit of soldering.
Q.05How long does the fast-restart backup last?
A few hours per charge — enough to cover a typical unplug and replug, so the next start is quick. It is not a permanent battery; after a long time unused it does a normal cold start again. The upside is zero maintenance — nothing to swap or leak.
Q.06Does it work on its own, without a Flipper Zero?
No. It is a companion module — the Flipper Zero is the host and is not included in this listing.
