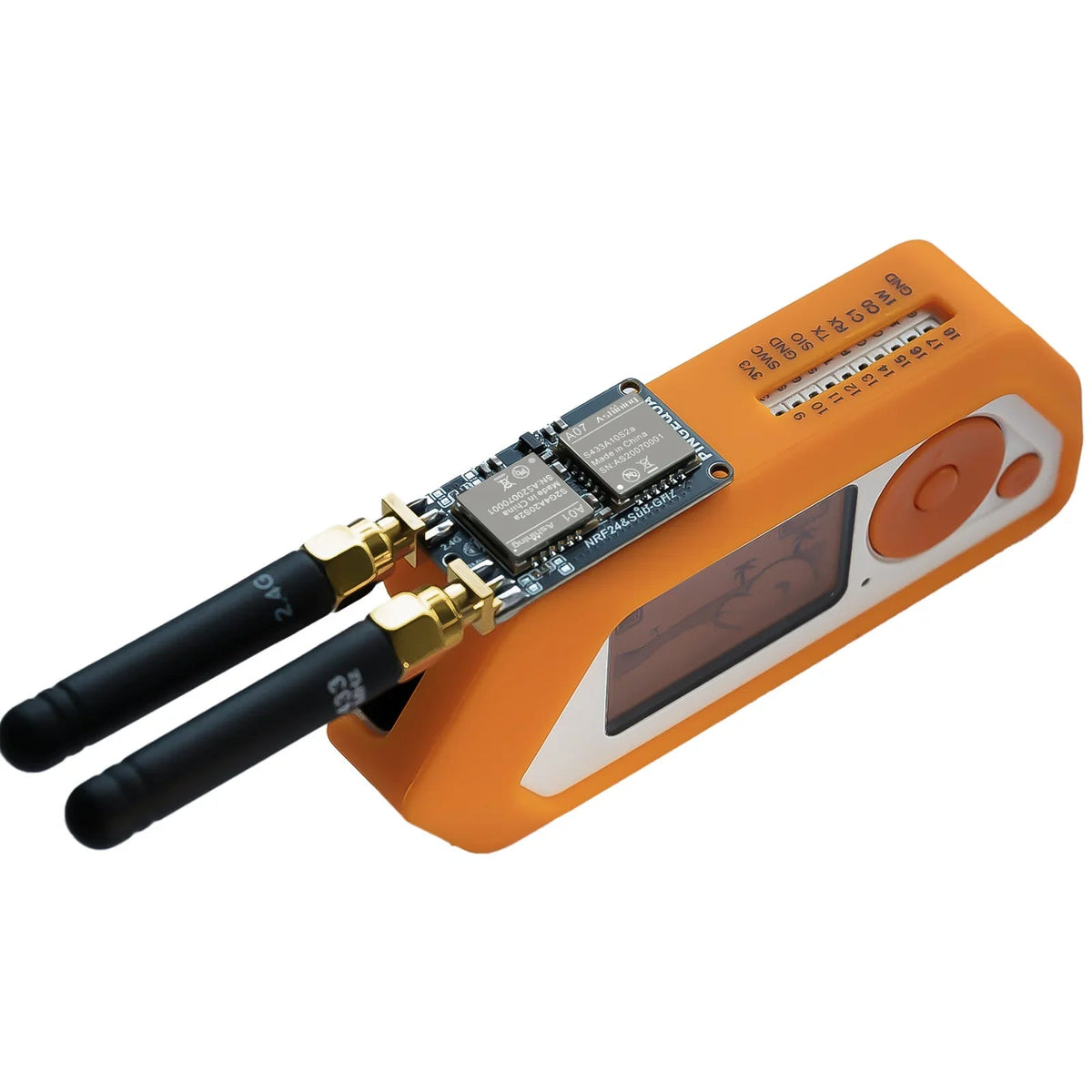

• RF Lab 2-in-1 module plugged into an orange Flipper Zero with 2.4 GHz and 433 MHz antennas

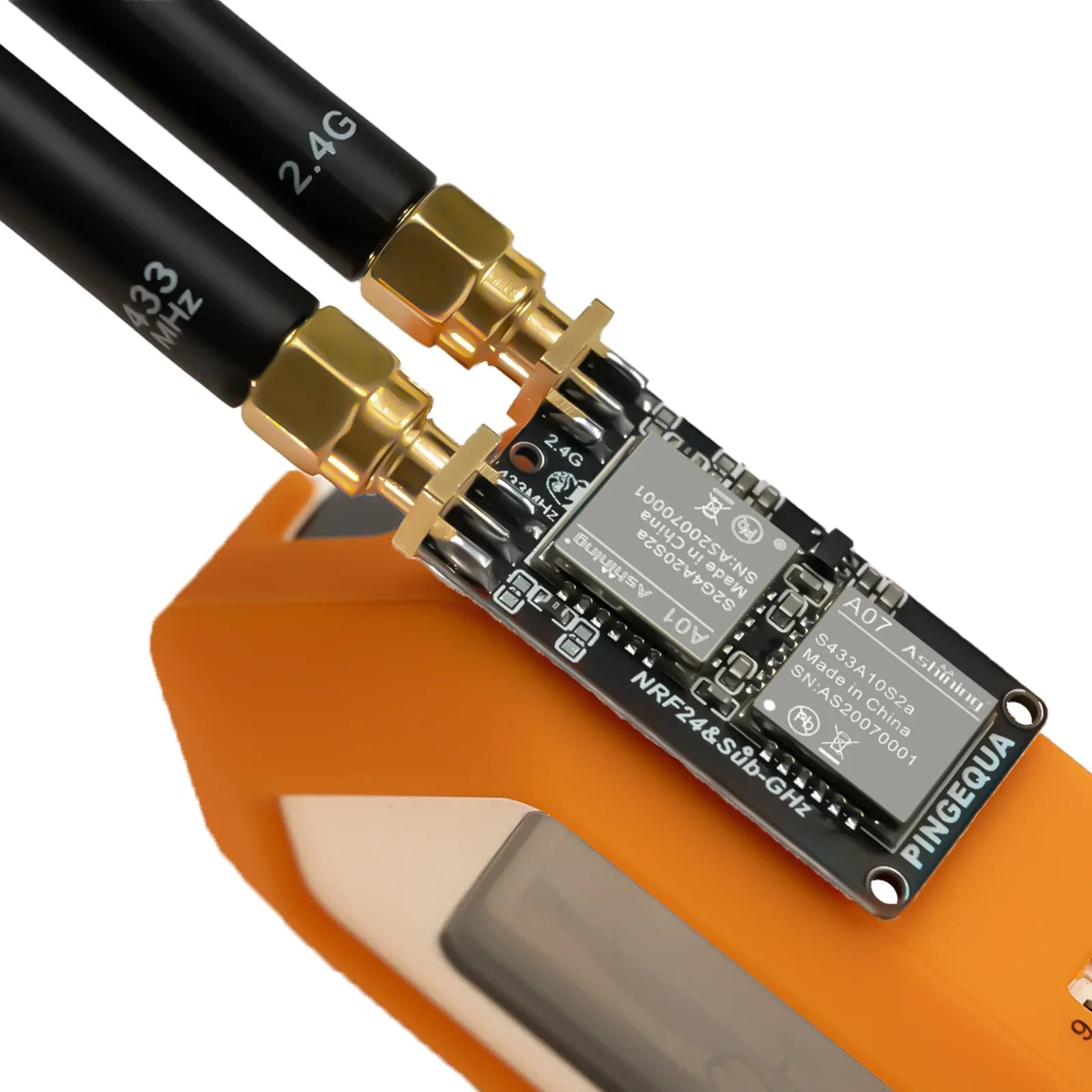

  • Close-up of dual SMA antennas and nRF24 plus CC1101 cans on a Flipper Zero GPIO header

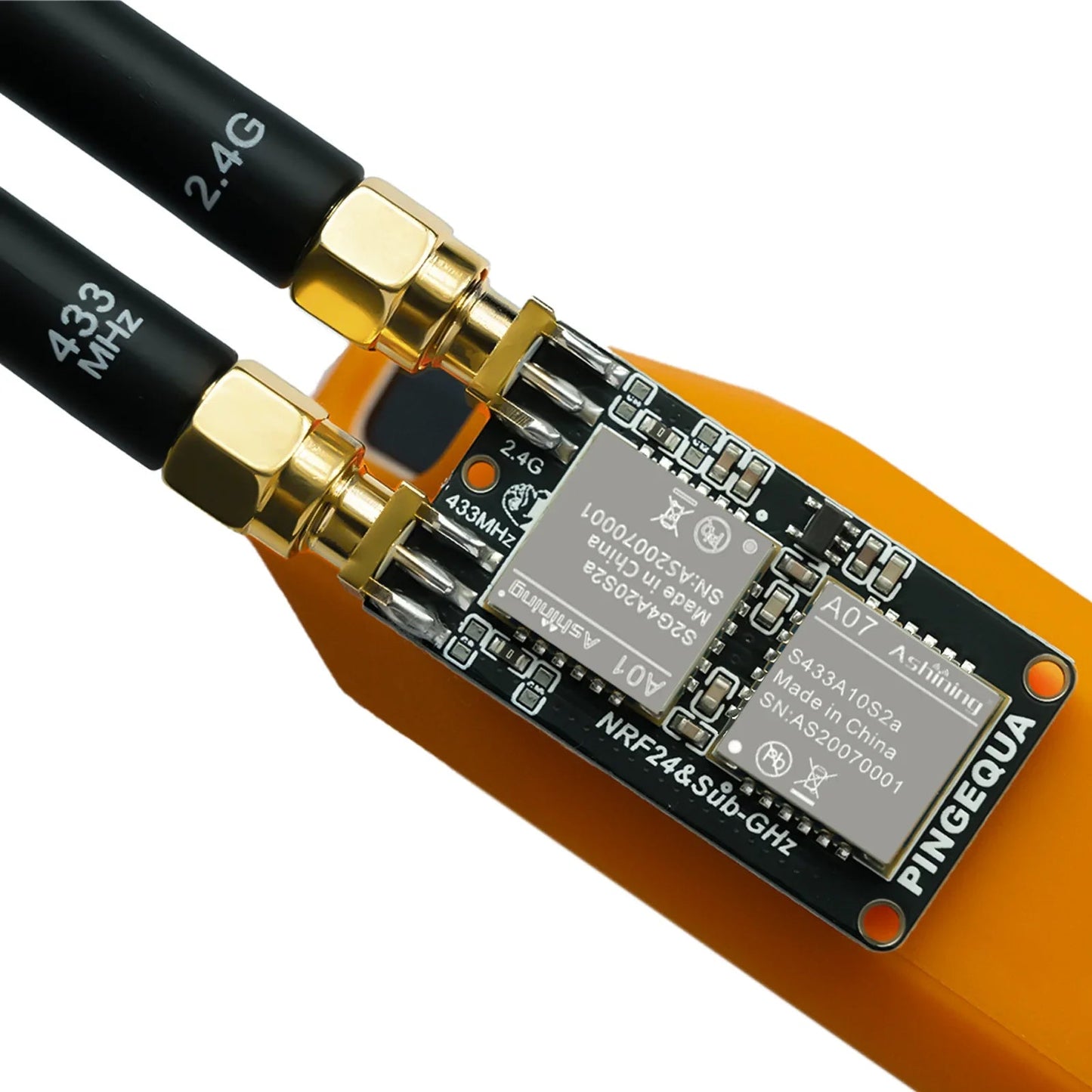

  • Top-down close-up of 2.4G and 433 MHz SMA connectors and the two RF shield cans

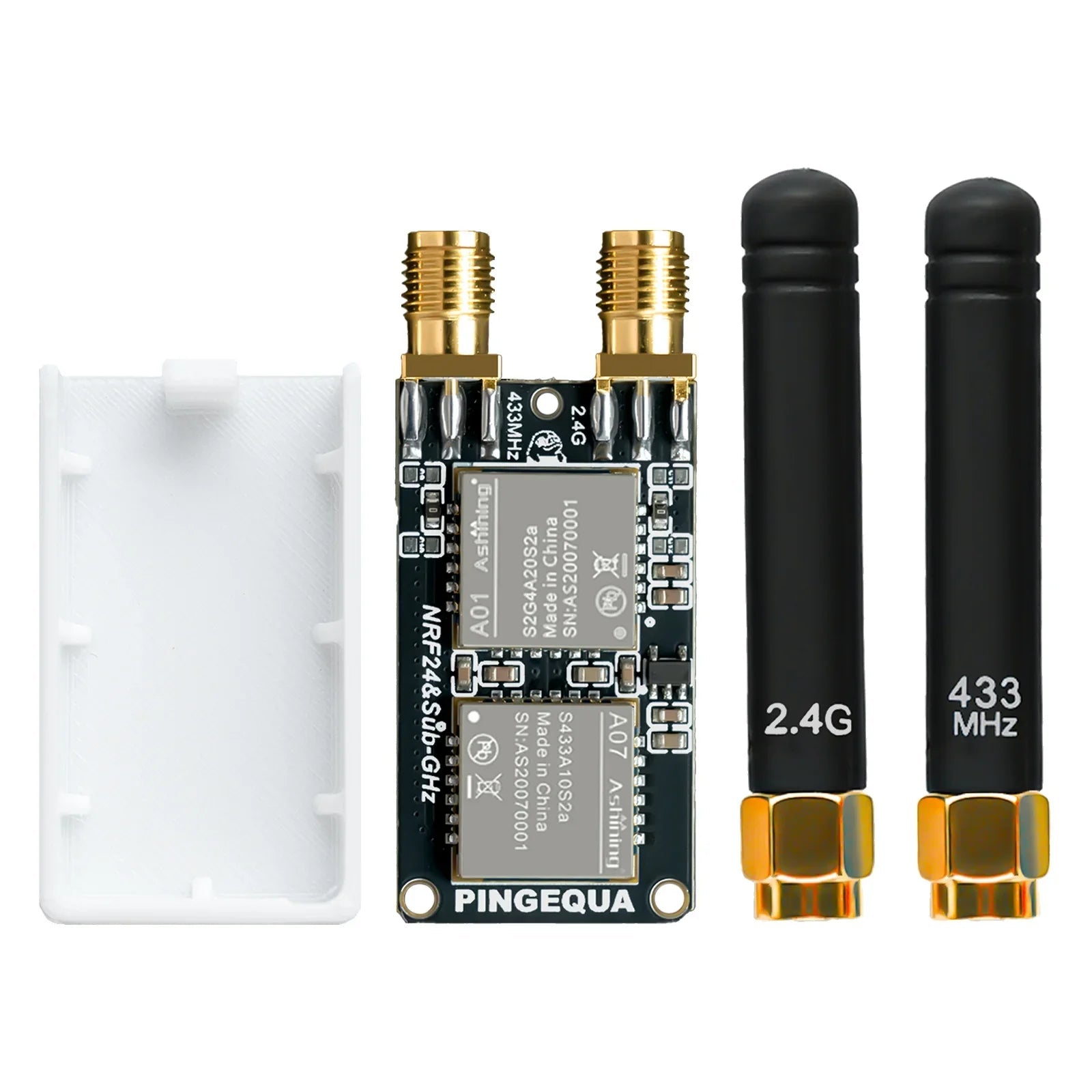

  • Unboxed kit: white GPIO cover, 2-in-1 board, 2.4 GHz antenna and 433 MHz antenna

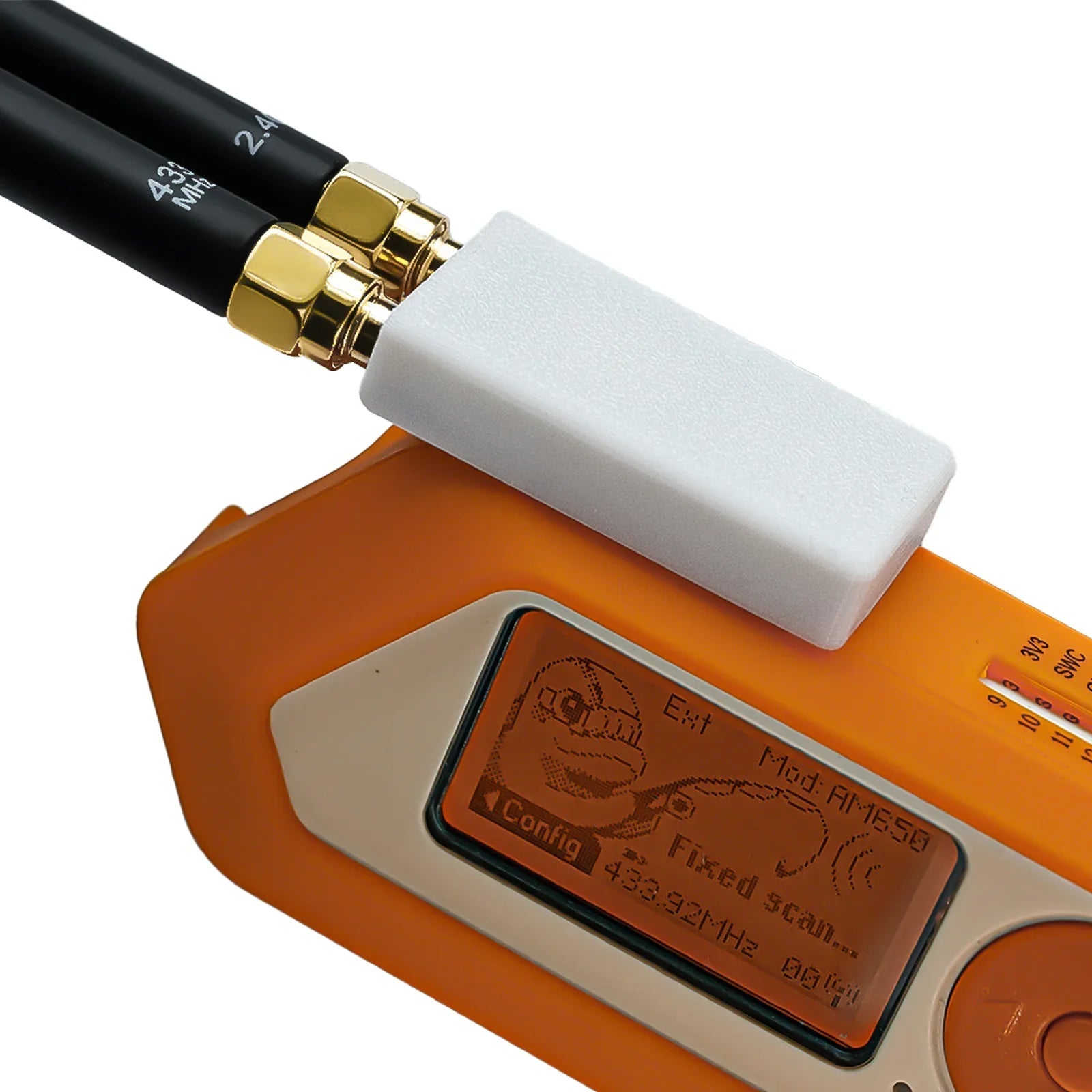

  • White cover installed over the 2-in-1 on Flipper Zero; Sub-GHz scan on the orange screen

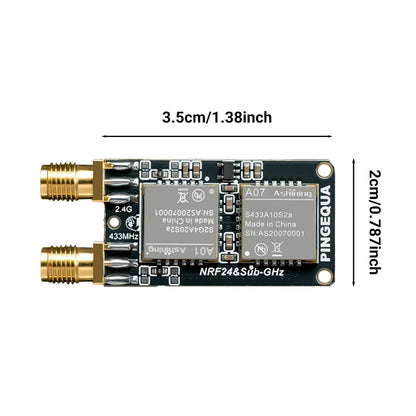

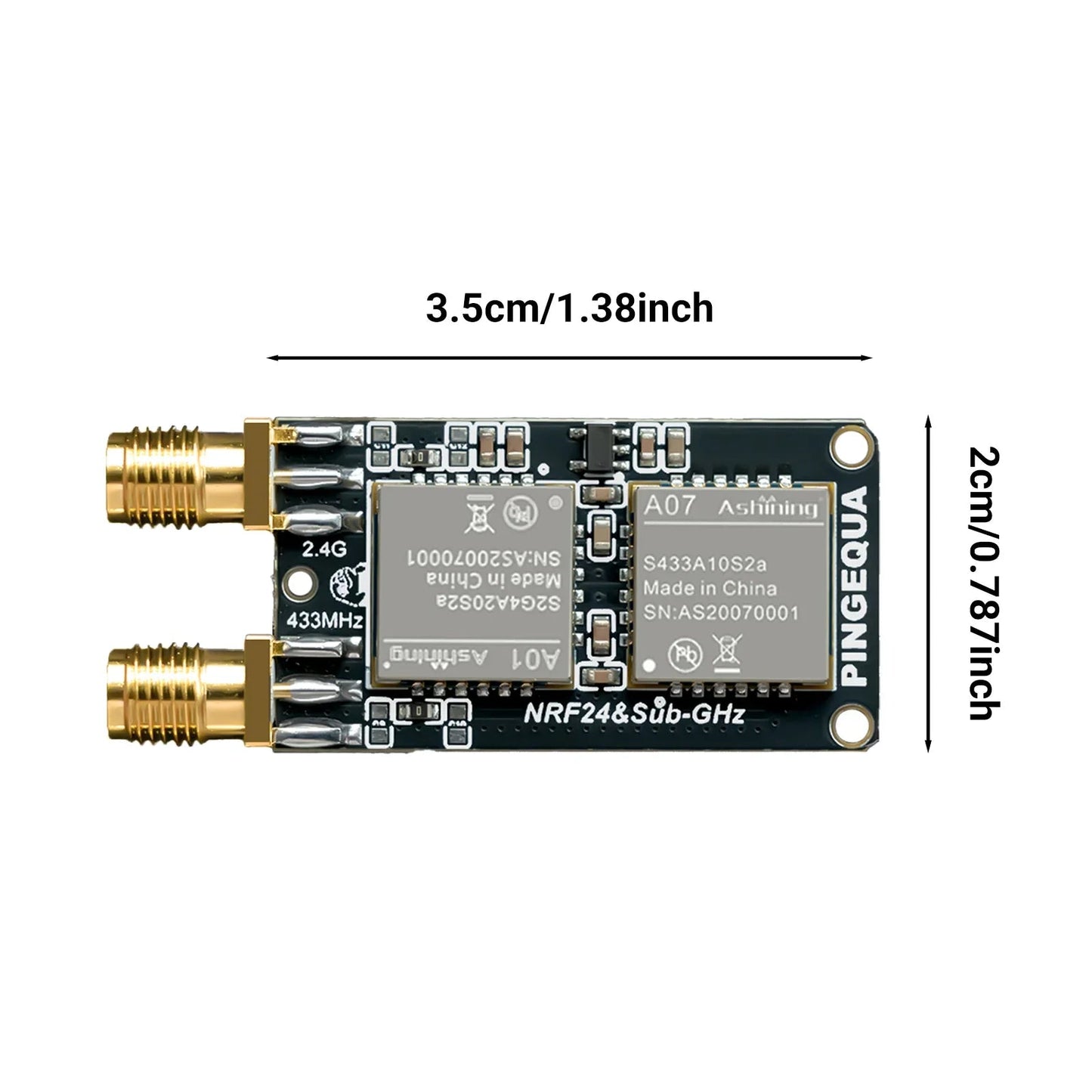

  • 2-in-1 PCB top with dual SMA jacks and a 3.5 cm by 2 cm size overlay

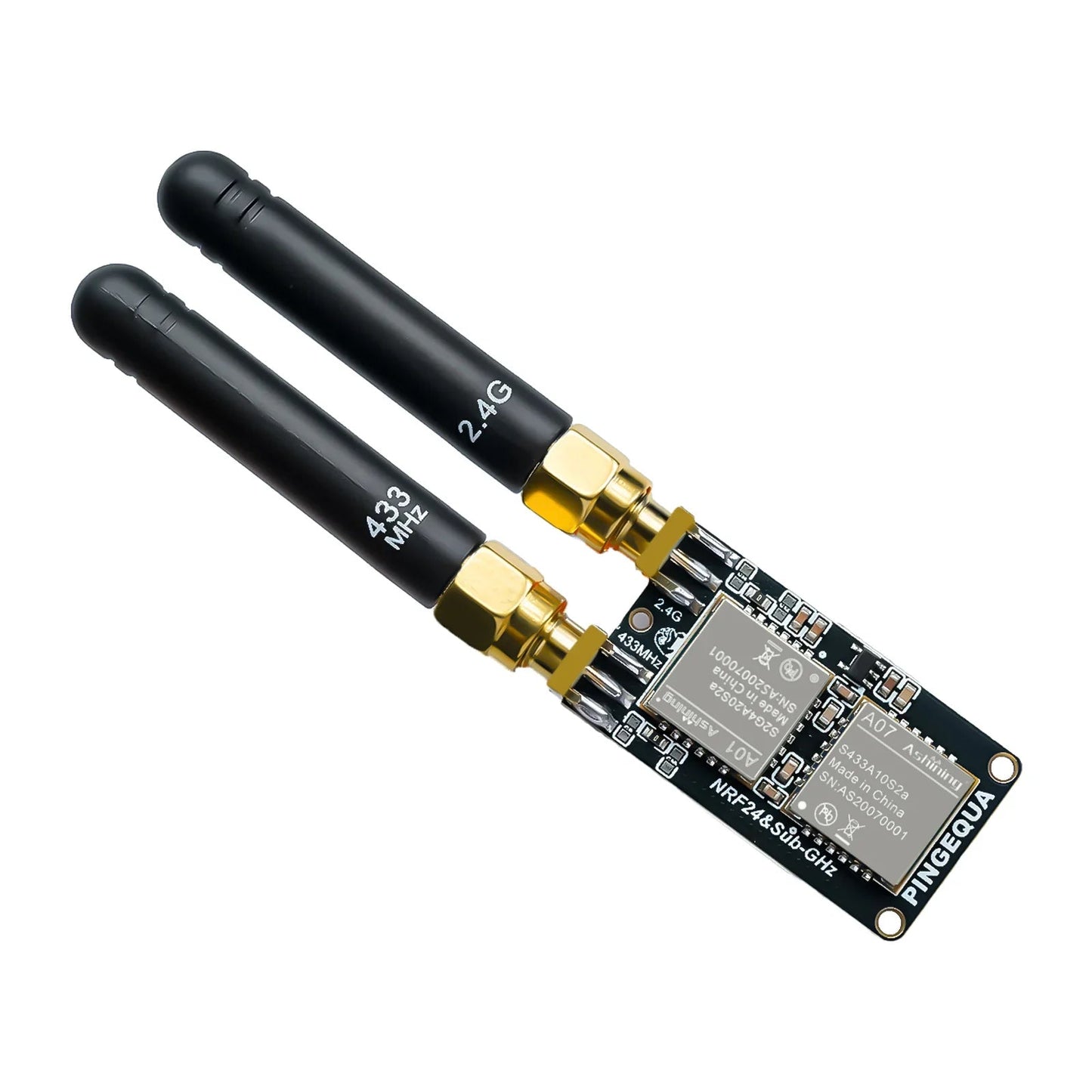

  • 2-in-1 board with labeled 2.4G and 433 MHz antennas attached, chips facing up

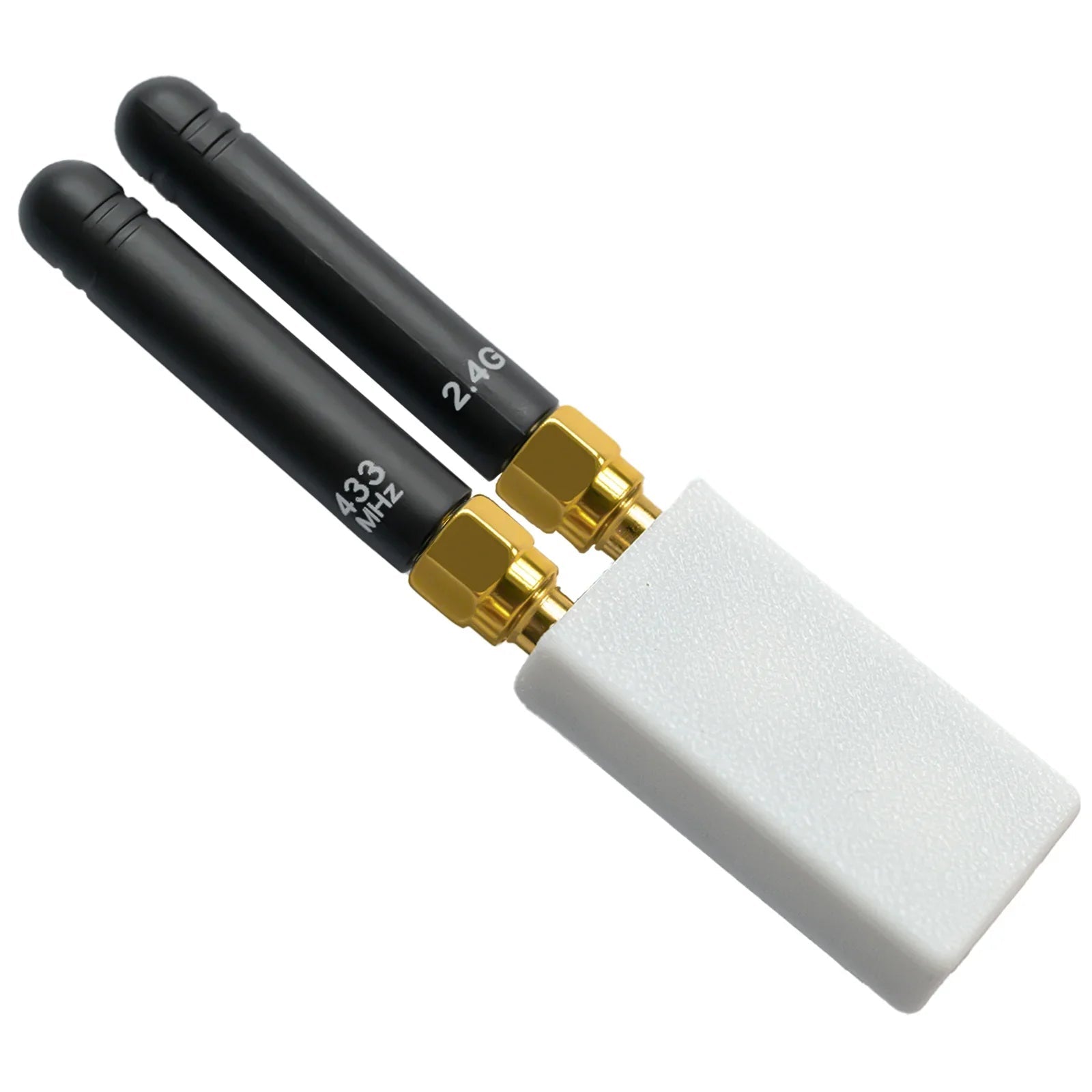

  • White plastic cover on the 2-in-1 module with both antennas installed

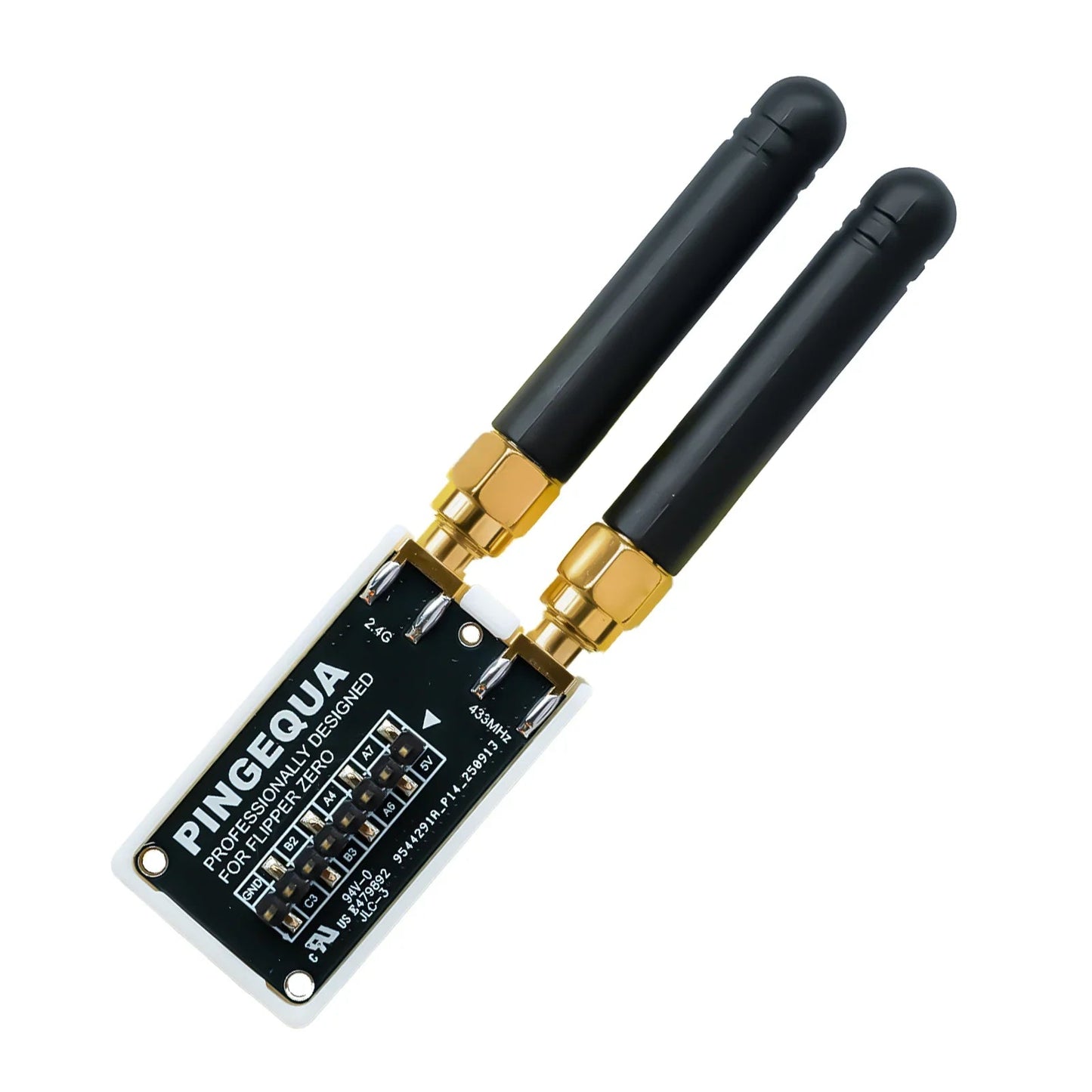

  • PCB back of the 2-in-1 showing GPIO pin labels and dual SMA antennas
1 9

PINGEQUA

RF Lab 2-in-1 for Flipper Zero - nRF24L01+ + CC1101 433 MHz

RF Lab 2-in-1 for Flipper Zero - nRF24L01+ + CC1101 433 MHz

$39.99 USD
$49.88 USD $39.99 USD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
PINGEQUA · RF LAB · v1

One module. Two radios. Zero workarounds.

A 2-in-1 nRF24L01+ + CC1101 GPIO board for Flipper Zero. Both chips share the SPI bus and are selected in software via dedicated CSN lines, with no jumpers, toggles, or manual switching. Ships with its own open-source toolkit.

Choose RF Lab 2-in-1 for nRF24 and CC1101 on one board. The basic CC1101 is accessory-grade; Horizon 433 Pro is the external PA/LNA CC1101. Flipper Zero host not included.

  • nRF24L01+ 2.4 GHz + CC1101 Sub-GHz
  • Dedicated CSN per chip · firmware-controlled
  • Official open-source .fap · zero manual setup
  • Verified on Official · Momentum · Unleashed · RogueMaster
Download Toolkit (.fap) View on GitHub Read the Wiki
// 01 · Architecture

Shared SPI · dedicated CSN per chip.

Signal Path
FLIPPER ZERO · GPIO HEADER (L)

SHARED SPI · MOSI · MISO · SCK

CSN · EXTRA 7
nRF24L01+ 2.4 GHz
CSN · PIN 4
CC1101 Sub-GHz
Both chips share the SPI bus. Firmware activates one at a time via its dedicated CSN line, with no jumpers or manual toggles.
Conventional 2-in-1
Single CSN or hardware jumper
Manual hardware switching between chips, plus per-session firmware reconfiguration.
VS
PINGEQUA RF Lab
Dedicated CSN per chip
Firmware-controlled selection with both chips permanently wired and ready, with no manual action required.
THIRD-PARTY NRF24 APPS

Use Momentum firmware, then configure GPIO pins:

START → PROTOCOLS → GPIO PINS

Set NRF24 SPI to Extra 7.

Some older third-party nRF24 apps hardcode legacy pin assignments, so partial incompatibility may remain outside the official PINGEQUA toolkit.

// 02 · Quick Start

Three steps. Both radios live.

01
Download pingequa_rf_toolkit.fap and drag it into /ext/apps/GPIO/ via qFlipper.
02
Open Apps → GPIO → PINGEQUA RF Lab on your Flipper.
03
Both radios are detected with no GPIO configuration and no manual switching.
Verified on
✓ Official ✓ Momentum ✓ Unleashed ✓ RogueMaster
// 03 · In the Box

What ships to your door.

1×
RF Lab Module
Crystal-frost PLA case
1×
2.4 GHz Antenna
Matched, threaded SMA
1×
Sub-GHz Antenna
Matched, threaded SMA
1×
Quick-Start Card
EN / JA, QR to GitHub

Flipper Zero host device is not included.

// 04 · Specifications

Technical specifications.

2.4 GHz Transceiver
Nordic Semiconductor nRF24L01+
Sub-GHz Transceiver
Texas Instruments CC1101
SPI Bus
Shared (MOSI · MISO · SCK)
nRF24 Chip Select
Extra 7 (configurable)
CC1101 Chip Select
Pin 4
Host Interface
Flipper Zero left GPIO header, no soldering required
Enclosure
3D-printed crystal-frost PLA, pre-installed
Antennas
1× 2.4 GHz + 1× Sub-GHz, matched
Companion FAP
pingequa_rf_toolkit.fap (open-source)
Repository
github.com/pingequalab/rf-lab
Documentation
pingequa.com/pages/wiki
Firmware
Official · Momentum · Unleashed · RogueMaster
// 05 · FAQ

Questions, answered straight.

Q · 00What is this for, and is the host included?+

For education, authorized research, and interoperability testing only. The host device is not included. See Compliance & Responsible Use.

Q · 01Will my Flipper firmware work, and what if I don't want to use your toolkit?+

Verified on Official, Momentum, Unleashed, and RogueMaster. With pingequa_rf_toolkit.fap, no GPIO setup is required.

If you prefer your firmware's native menus, both paths are documented:

NRF24 → START → PROTOCOLS → GPIO PINS → NRF24 SPI → Extra 7
CC1101 → Sub-GHz → Radio Settings → Module → External
Q · 02Older reviews mention "module not found" errors. Is that still an issue?+

Yes, it was real, and we do not hide it. Our dedicated-CSN layout was not compatible with some older third-party apps that hardcoded the legacy single-CSN pin assignment.

We addressed it by writing our own toolkit that drives both chips natively. Anyone affected should download the latest .fap above and try again.

Q · 03Do I need to solder anything? Is the Flipper Zero included?+

No soldering. The board plugs onto the Flipper Zero left GPIO header. Power off, slot it in, then power on.

The Flipper Zero itself is not included and is sold separately by Flipper Devices.

Q · 04Shipping, returns, and warranty?+

Worldwide shipping, processed within 48 hours. Typical delivery: 7–15 business days.

14-day return policy on unused items. Limited warranty against manufacturing defects, excluding damage from improper flashing or overvoltage.

For educational and research use. Operate only on devices and frequencies you are authorized to use.

Key specifications

Compatible host Flipper Zero
Radio chipset CC1101, nRF24L01+
Frequency bands 433 MHz, 2.4 GHz
Extra features 3D-printed case, RF Lab app
Firmware compatibility Momentum
Host interface GPIO 8Pin
RF protocols NRF24 & CC1101
Host device included No
Connection GPIO header

Specifications updated 2026-07-25.

Shipping & Delivery

We dispatch in 1–3 business days from Dongguan / Shenzhen. Free tracked shipping from $29.99 USD ($34.99 in the EU). Typical transit after dispatch: 7–10 business days to the US, Canada, the UK, and the EU. Duties and taxes are included for the US, Canada, the UK, and the EU. Host device is not included.

Warranty & Returns

14-day returns for unused items in original packaging. 6-month limited warranty against manufacturing defects. Change-of-mind return shipping is paid by the customer. We cover return shipping for defective, damaged, or wrong items. Damage from wiring mistakes or incorrect flashing is not covered.
