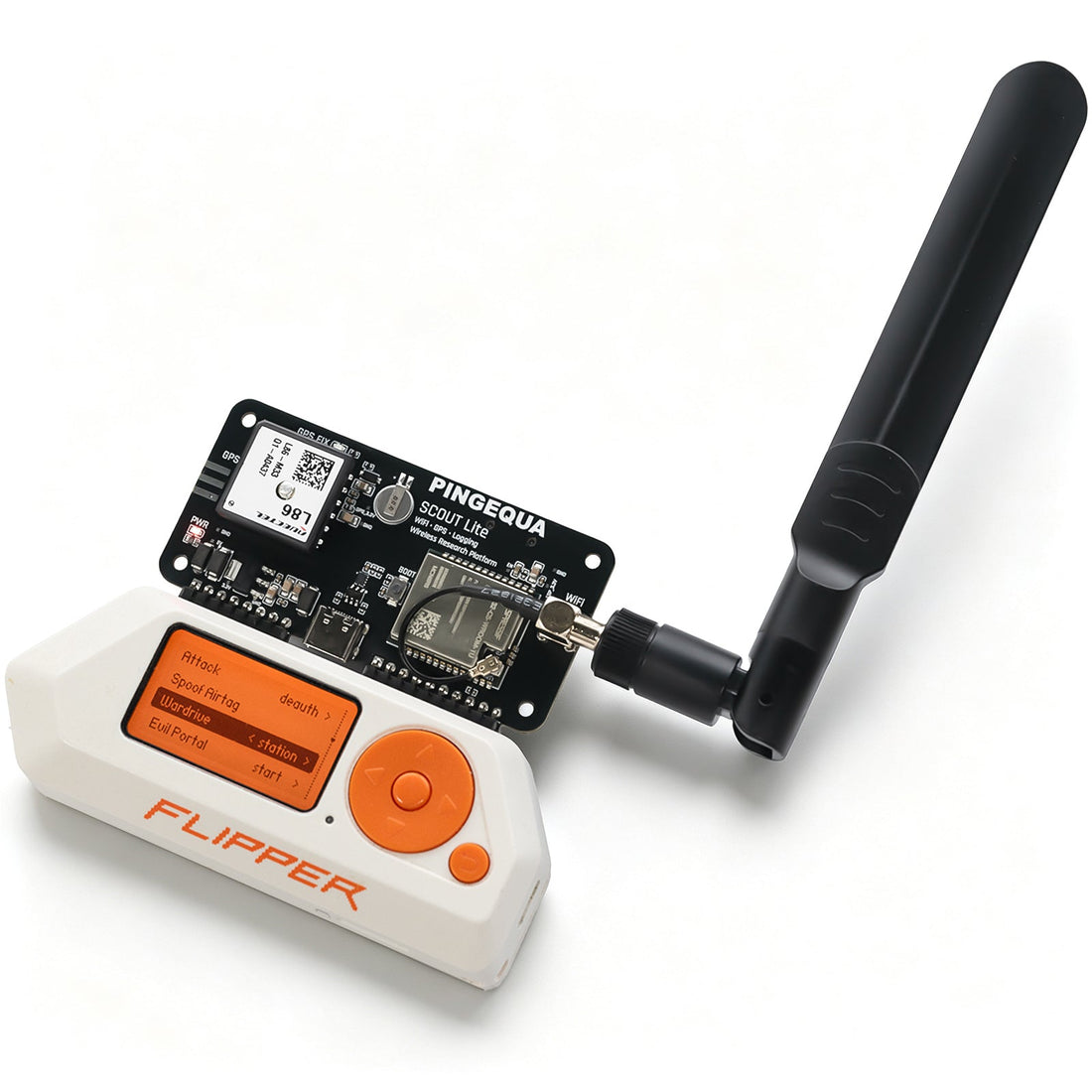

PINGEQUA Scout Lite ESP32-C5 board with Flipper Zero Marauder and Biscuit DIY phone GPS workflows

Scout Lite + Biscuit DIY Firmware: Flash Guide, Phone GPS & Marauder Recovery

PINGEQUA Lab · Scout Lite firmware guide · 9 min read · Published 2026-08-13

A community video shows Biscuit DIY firmware running on PINGEQUA Scout Lite. The experiment gives Scout Lite owners a phone-controlled Biscuit workflow in addition to the board's factory-ready ESP32 Marauder path—but the two firmware choices use GPS differently.

Quick answerYes: Scout Lite's ESP32-C5 can be flashed with Biscuit DIY, as demonstrated by Hackazillarex. But this is a community-tested configuration, not a Scout Lite target listed in Biscuit's official DIY documentation. Biscuit currently gets location from your phone; it does not document using Scout Lite's onboard L86-M33 GPS. For onboard GPS, microSD logging and Flipper Zero control, keep—or restore—the pre-flashed ESP32 Marauder setup.

Start with hardware that is Marauder-ready

Scout Lite combines ESP32-C5 dual-band Wi-Fi, an onboard L86-M33 GPS, microSD and USB-C in one Flipper Zero board. It ships pre-flashed with ESP32 Marauder, so Biscuit is an optional experiment—not a setup requirement.

Get Scout Lite · view current price →Save the Marauder recovery flasher →

What changes when Scout Lite runs Biscuit DIY?

Think of Scout Lite as the hardware platform and the firmware as the operating mode. Flashing Biscuit does not add a new radio or improve the physical GPS receiver. It changes how you control the ESP32-C5 and where the software gets its location data.

Workflow Scout Lite + ESP32 Marauder Scout Lite + Biscuit DIY
Control interface Flipper Zero companion app / local hardware workflow Biscuit Manager on an iOS or Android phone over Bluetooth LE
GPS source Scout Lite onboard L86-M33 Phone location; no public Scout L86 integration is documented
Logging Onboard microSD in the documented Scout Lite Marauder workflow Phone-based mapping/logging; Scout-specific microSD support is not verified
Flipper Zero required? Designed as a Flipper Zero accessory and control path No for Biscuit Manager control; the phone becomes the user interface
Support status Factory-ready PINGEQUA configuration Community-demonstrated; not named in Biscuit's official board list
Best fit Dedicated GPS wardriving with one integrated board Experimenting with Biscuit's phone-first Wi-Fi and BLE toolset
GPS answer · verified August 13, 2026

Biscuit's current official architecture uses the phone's GPS. Biscuit states that GPS, logging and map rendering run on the phone, and its DIY setup requires Bluetooth and Location permission in Biscuit Manager. Its published ESP32-C5 board profiles contain no Scout Lite GPS UART or L86-M33 configuration.

That means Scout Lite's onboard GPS is not defective or removed—it simply is not the documented position source in Biscuit mode. Restore Marauder when you want the integrated L86 GPS workflow.

The community flash demonstration

Hackazillarex published the following Scout Lite walkthrough on August 12, 2026. It is useful evidence that an experienced user can flash and connect Biscuit DIY on this ESP32-C5 board. It is not an official compatibility certification from Biscuit, PINGEQUA or Flipper Devices.

Video: “Pingequa Scout Lite Board - How to flash Biscuit DIY Firmware” by Hackazillarex. At 0:48, the creator selects Biscuit DIY C5DEV and the current firmware version. This remains a community configuration; Biscuit's official DIY page does not list a Scout Lite profile.

About the indoor-GPS comment: the creator reported getting a location indoors near windows, but that comment does not identify the hardware source. Because Biscuit's documented workflow uses phone location, it should not be treated as proof that Biscuit reads Scout Lite's L86 GPS.

Before you flash: make the experiment reversible

Scout Lite already arrives with ESP32 Marauder. If your priority is reliable Flipper Zero wardriving with onboard GPS, there is nothing you need to replace. If you want to try Biscuit, save the recovery path first:

  1. Open and bookmark the PINGEQUA Scout Lite recovery flasher. This is the direct route back to the intended Marauder setup.
  2. Use a data-capable USB-C cable. A charge-only cable can power the board while preventing the browser from seeing its serial interface.
  3. Disconnect the board from the Flipper Zero before USB flashing. Flash and power it through one controlled connection.
  4. Keep the antennas attached for radio use. Entering the bootloader does not require transmitting, but later RF operation should use the correct attached antenna.

How to flash Biscuit DIY on Scout Lite

The safe route combines Biscuit's official bootloader procedure with the Scout Lite community video. The video uses the Biscuit DIY C5DEV profile. Because Biscuit v1.4.16 does not publish a Scout Lite target, that choice remains a community configuration rather than a PINGEQUA-supported factory image.

  1. Watch the embedded Scout Lite video once before starting. At 0:48, the creator selects Biscuit DIY C5DEV and the current version.
  2. Open Biscuit's official DIY instructions. Use the linked Biscuit web flasher from the DIY documentation, not an unknown mirrored binary.
  3. Enter the ESP32-C5 bootloader. Biscuit documents this sequence: connect USB, hold BOOT, press and release RESET, then release BOOT.
  4. Select Biscuit DIY C5DEV and the current version, as demonstrated in the video. Do not interpret it as an official Scout Lite profile unless Biscuit adds Scout Lite to its supported-board list.
  5. Install Biscuit Manager. On first launch, grant both Bluetooth and Location permission; Biscuit needs the phone for control and GPS mapping.
  6. Connect and run a passive scan first. Confirm that the phone sees the device, the scan results update and the phone location appears before testing any other authorized lab function.
Current Biscuit support boundary

Biscuit DIY v1.4.16 was published July 16, 2026. Its official DIY page lists C5 DevKit, LILYGO T-Dongle, Waveshare ESP32-C5, XIAO ESP32-C5 beta and AWOK variants; Scout Lite is not named. The page says any ESP32-C5 board with 8 MB flash is compatible in principle, but board-specific GPS, SD and pin routing still require a matching profile.

Check the latest Biscuit DIY release →  ·  Read the official DIY board list →

How to restore ESP32 Marauder

If Biscuit does not fit your workflow—or you want Scout Lite's onboard GPS and microSD integration again—restore the board's intended Marauder firmware:

  1. Disconnect Scout Lite from the Flipper Zero.
  2. Open the Scout Lite browser recovery flasher in desktop Chrome or Edge.
  3. Hold BOOT while connecting the Scout Lite USB-C port, then choose the detected serial device.
  4. Run the Scout Lite flash option and wait for completion before unplugging.
  5. Reconnect Scout Lite to the Flipper Zero and confirm Marauder can scan; then test GPS outdoors with a clear sky view.

This reversible path is the strongest reason to experiment on Scout Lite: you are not buying a Biscuit-only board. You are buying an integrated Marauder wardriver that can also participate in an emerging ESP32-C5 firmware ecosystem.

Biscuit DIY or Marauder: which should you choose?

Choose Marauder first

You want Flipper Zero control, the onboard L86-M33 GPS, microSD wardriving logs and the lowest setup risk. This is the configuration Scout Lite ships ready to use.

Try Biscuit DIY

You want a phone-controlled C5 experiment, Biscuit's Wi-Fi/BLE interface and mobile mapping—and accept phone GPS plus community-level Scout compatibility.

Biscuit is not “better Marauder,” and Marauder is not “Biscuit without a phone.” They are different control and logging architectures. For most Scout Lite buyers, the sensible order is Marauder first, Biscuit second: verify the hardware in its supported configuration, then experiment knowing how to return.

Why Scout Lite remains the valuable part of both setups

  • One ESP32-C5 radio platform: native 2.4 and 5 GHz Wi-Fi 6 scanning hardware without stacking separate Wi-Fi boards.
  • Integrated positioning: the L86-M33 provides onboard location in the intended Marauder workflow instead of requiring a loose GPS module.
  • Integrated storage: the microSD slot supports the documented Marauder logging path; the card is sold separately.
  • External dual-band antenna: the board includes the antenna needed for its intended Wi-Fi operation.
  • Recoverable firmware path: PINGEQUA provides a Scout-specific browser flasher for returning to Marauder after experiments.

Scout Lite's product page was checked on August 13, 2026 at $64.98 USD. Price and availability can change, so use the live product page at checkout.

Related guides: See why the ESP32-C5 matters for single-chip dual-band wardriving. If you return to Marauder and scanning or logging does not behave as expected, use the ESP32 Marauder wardrive troubleshooting guide.

One Scout Lite, two firmware paths

Use Marauder out of the box for the full onboard-GPS Flipper Zero workflow. If you enjoy firmware experimentation, follow the Biscuit community demo—and keep the Scout recovery flasher bookmarked.

Buy Scout Lite for Flipper Zero →Watch the Biscuit flash video →Restore Marauder →

FAQ

Can PINGEQUA Scout Lite run Biscuit DIY firmware?
A community video published August 12, 2026 demonstrates Biscuit DIY running on Scout Lite's ESP32-C5. Biscuit's official v1.4.16 DIY board list does not name Scout Lite, so treat this as a community-tested configuration rather than official Scout Lite support.
Does Biscuit use Scout Lite's onboard L86 GPS?
Not in the currently documented workflow. Biscuit states that GPS, logging and map rendering run on the phone, and its DIY setup requires phone Location permission. No public Scout Lite GPS UART profile is listed. Use Marauder when you want Scout Lite's onboard L86-M33 GPS.
Do I need a Flipper Zero to use Biscuit on Scout Lite?
Biscuit Manager controls the ESP32-C5 from an iOS or Android phone over Bluetooth LE, so Flipper Zero is not the Biscuit control interface. Scout Lite's factory Marauder workflow is the option designed around the Flipper Zero.
Is Biscuit DIY better than ESP32 Marauder?
They serve different workflows. Biscuit is phone-first and uses phone GPS; Marauder on Scout Lite is Flipper-oriented and uses the board's L86-M33 GPS plus its documented microSD logging path. Choose based on the interface and GPS source you want.
Can I restore Marauder after flashing Biscuit?
Yes. Disconnect Scout Lite from Flipper Zero, open PINGEQUA's Scout Lite recovery flasher in desktop Chrome or Edge, enter bootloader mode with BOOT during USB-C connection, flash the Scout Lite image and reconnect after completion.
Will Scout Lite's microSD slot work in Biscuit DIY?
That Scout-specific combination is not verified in Biscuit's public documentation. Biscuit supports SD functions on its named board profiles, but Scout Lite is not one of those profiles. Do not buy or flash based on a promise of Biscuit microSD support; use Marauder for the documented Scout Lite SD logging workflow.
Can Biscuit wardrive Wi-Fi and BLE at the same time?
Biscuit's official DIY limitations say the single ESP32-C5 cannot run a simultaneous Wi-Fi-and-BLE Wardrive All mode. It can provide Wi-Fi and BLE workflows, but not that combined mode on one C5.
Does Scout Lite capture 5 GHz handshakes?
No such promise is made here. Scout Lite's product documentation positions 5 GHz for scanning and enumeration and explicitly does not promise 5 GHz handshake capture. Use the board only for functions supported by the firmware version you have installed.

Primary sources: PINGEQUA Scout Lite product page (price and hardware details accessed August 13, 2026); PINGEQUA Scout Lite recovery flasher (accessed August 13, 2026); Biscuit DIY documentation (board list, setup and limitations accessed August 13, 2026); Biscuit architecture page (phone GPS/logging statement accessed August 13, 2026); Biscuit DIY releases (v1.4.16 released July 16, 2026); ESP32 Marauder releases (stable v1.14.1 released August 1, 2026); Hackazillarex Scout Lite Biscuit DIY video (published August 12, 2026).

For authorized security research, education and testing on equipment and networks you own or have permission to assess. Wi-Fi and Bluetooth rules vary by location. Scout Lite is an unintentional or intentional radiator platform depending on configuration; FCC Part 15, SDoC, FCC ID, CE/RED and other obligations depend on the final transmitter, antennas, firmware functions and market. “Flipper Zero,” “Biscuit” and “ESP32 Marauder” are referenced for interoperability and identification; PINGEQUA is independent and is not endorsed by their owners.
