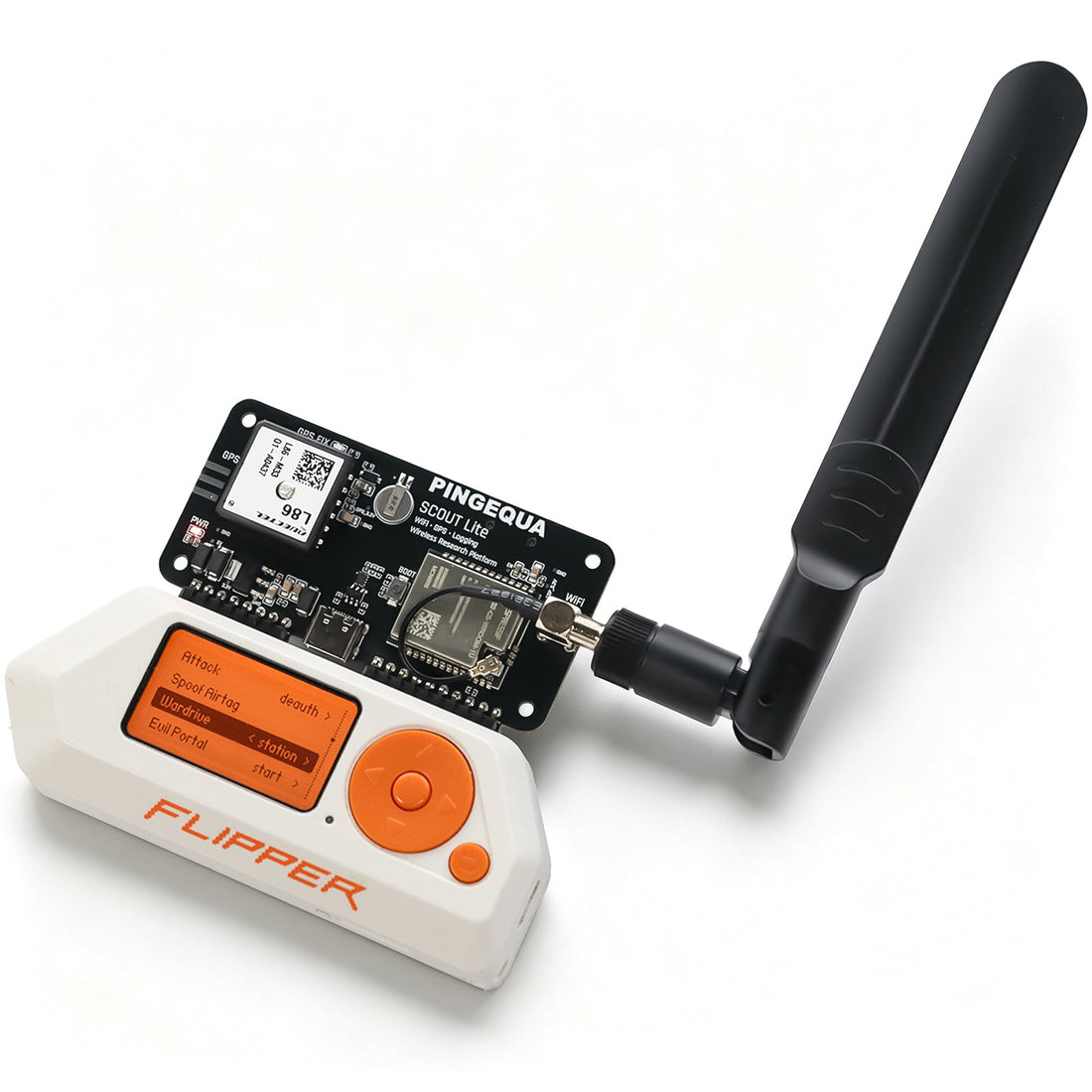

Scout Lite preloaded ESP32-C5 wardriver - no soldering, no PC, for Flipper Zero

ESP32-C5 Wardriving with No Soldering, No PC: Flipper Zero Quick Start (2026)

PINGEQUA Lab · ESP32-C5 Wardriving · 7 min read · Updated 2026-08-03

Wardriving on Flipper Zero usually starts with a parts order: a GPS module to wire in, a microSD card to format, and a flashing toolchain to fight before you've logged a single access point. This is the plug-and-play version — an ESP32-C5 wardriver with no soldering and no PC required, where the gap between "unbox it" and "scanning outside" is however long it takes you to insert a memory card. If you've already got a bare ESP32-C5 dev board and a soldering iron, none of this is required reading; it's for everyone else who just wants a wardriving log by the end of the weekend.

Quick answer Yes — a preloaded board like the Scout Lite wardrives on Flipper Zero with no soldering: GPS and microSD ship hardwired and onboard, and ESP32 Marauder is already installed. Power on, insert a FAT32 card, go outside, and scan.

The DIY path vs. plug-and-play

The cheapest way onto an ESP32-C5 right now is a bare dev board like the Seeed Studio XIAO ESP32-C5 — $6.99 (as of 2026-08-03, prices vary) for the module alone. It's a legitimate way to get Espressif's first dual-band 2.4 GHz + 5 GHz Wi-Fi 6 chip in your hands, but "wardriver" is not what it ships as. There's no GPS, no SD slot, and no firmware on it — you supply the GPS module and wiring, the microSD breakout, and then flash Marauder yourself through a toolchain. Community members hitting that last step have run into real snags: ESPHome issue #14045, opened 2026-02-18, documents a "Failed to initialize" error flashing a virgin XIAO ESP32-C5 over serial, with the workaround being a separate flasher tool followed by OTA updates instead of serial for anything after the first flash.

A preloaded board skips all of that by doing the wiring and flashing at the factory instead of on your desk. Both paths land on the same silicon — the ESP32-C5 is Espressif's first dual-band chip, unlike the 2.4 GHz-only ESP32 / S2 / S3 / C3 / C6 family that came before it — so what changes is assembly time, not the radio. Whether that dual-band chip actually gets you a working 5 GHz wardrive is a separate question we cover in can Flipper Zero wardrive 5GHz? For a full board-by-board rundown of every 2026 ESP32-C5 option — DIY and preloaded — see our ESP32-C5 wardriving board buying guide.

The wiring step is also where a lot of user-reported wardriving trouble starts. Marauder's GitHub issue tracker has multiple reports of SD card init/mount failures on DIY builds (issue #227, issue #95) and a GPS module that shows up as detected but never returns a fix until a hard reset (issue #338 — one user's summary: "Very confusing lol"). None of those failure modes are exclusive to any one board; they're symptoms of a homemade GPS/SD connection, and a factory-soldered board routes around them by construction, not by some kind of firmware immunity.

Capability Seeed XIAO ESP32-C5 (bare) Scout Lite (preloaded)
Price $6.99, bare board $64.98
Soldering / wiring required Yes — you add GPS + SD wiring No — hardwired GPS, onboard SD
Firmware flashing required Yes — you flash Marauder yourself No — ships preloaded
Known flashing snag ESPHome serial-flash failure, issue #14045 (opened 2026-02-18) Not applicable — flashed at the factory
Time to first scan Hours — source hardware, wire, flash, debug Minutes — format a card, power on

Prices as of 2026-08-03; both boards vary by seller and can change.

Quick start in minutes

With GPS and microSD already wired and Marauder already on the board, there's no assembly step between opening the box and starting a scan:

  1. Power on the board mounted to your Flipper Zero. GPS and microSD are already wired internally, so there's nothing to connect.
  2. Format a microSD card of 32GB or less as FAT32 — Marauder's official card requirement — and insert it.
  3. Take it outside. GPS needs open sky for a cold-start fix, which the official wardrive wiki puts at roughly 30 seconds to 2 minutes.
  4. Open the wardrive app from the Marauder menu. It logs publicly broadcast SSID, BSSID, and GPS coordinates to the card as you move — no connecting to networks, no cracking anything.
  5. As of Marauder v1.14.0 (released 2026-07-22), you can upload the log straight from the device to WiGLE or WDGWars — no card pull, no separate uploader app.

That's the whole setup. There's no step in that list that involves a soldering iron, a breadboard, or a laptop — the only tool required is a microSD card reader, and only because you're formatting the card, not building anything.

If you ever DO need to (re)flash

Preloaded doesn't mean permanently frozen — if you ever want to update or reinstall Marauder later, that's a browser job over Web Serial, not a PC toolchain session; we walk through it in flashing Marauder without a PC.

An honest 2026 note: Skipping the soldering iron removes assembly mistakes — a mis-wired GPS pin, a cold solder joint on the SD holder — but Scout Lite still runs stock ESP32 Marauder firmware, so firmware-layer bugs can still find you. Users have reported C5 GPS baudrate detection failing on boot (issue #1268), wardrive memory climbing toward 95% before a single AP is logged (issue #1087), and the wardrive screen freezing white after roughly 20 files / 15.7MB of logs (issue #1343). Preloaded hardware fixes the wiring problem, not the firmware upstream. In practice, none of that stops you from starting a wardrive within minutes of unboxing — it just means "no soldering" buys you assembly time, not a guarantee that every scan finishes clean.

Scout Lite: unbox it, wardrive

No soldering, no separate flashing session. GPS and microSD ship hardwired and onboard, and ESP32 Marauder is preloaded at the factory.

Get the Scout Lite →
Read the setup guide →

FAQ

Can I wardrive without soldering?
Yes. A preloaded board like the Scout Lite ships with GPS and microSD already wired and mounted, and ESP32 Marauder already installed — you don't solder anything to start wardriving on Flipper Zero. Bare ESP32-C5 dev boards can wardrive too, but only after you wire your own GPS and SD and flash the firmware yourself.
Do I need a PC to set up Marauder?
No, not for a preloaded board — it arrives with Marauder already flashed, so you only need to format a microSD card and go outside. If you later want to reflash or update the firmware yourself, that can be done from a browser via Web Serial without a PC toolchain.
What's the fastest way to start wardriving on Flipper Zero?
Power on a board with GPS, SD, and Marauder already installed, insert a FAT32-formatted microSD card of 32GB or less, go outside so the GPS can get a cold-start fix (roughly 30 seconds to 2 minutes), and start the wardrive app from the Marauder menu. There's no wiring, flashing, or PC step in between.
Is Scout Lite preloaded with Marauder out of the box?
Yes. Scout Lite ships preloaded with ESP32 Marauder (check the product page for the current version) along with a hardwired Quectel L86-M33 GPS and onboard microSD, so there's no separate flashing step before your first wardrive.

Sources & further reading (verified 2026-08-03): Marauder v1.14.0 release notes (direct WiGLE/WDGWars upload) · Marauder official FAQ (SD card ≤32GB, FAT32) · Marauder wardrive wiki (GPS cold-start time) · issue #1268 · issue #1087 · issue #1343 · issue #227 · issue #95 · issue #338 · Seeed Studio XIAO ESP32-C5 product page · ESPHome issue #14045 (XIAO ESP32-C5 serial flashing failure).

For authorized security testing and education only. Test only networks and devices you own or have explicit written permission to test. You are responsible for compliance with all applicable laws and radio regulations (e.g. FCC Part 15 in the US). "Flipper Zero" and "ESP32 Marauder" are referenced for compatibility and comparison; PINGEQUA is independent and not affiliated with or endorsed by their respective owners.
