Automatic radio selection
Bruce activates CC1101 or nRF24L01+ without a manual RF toggle.
PINGEQUA

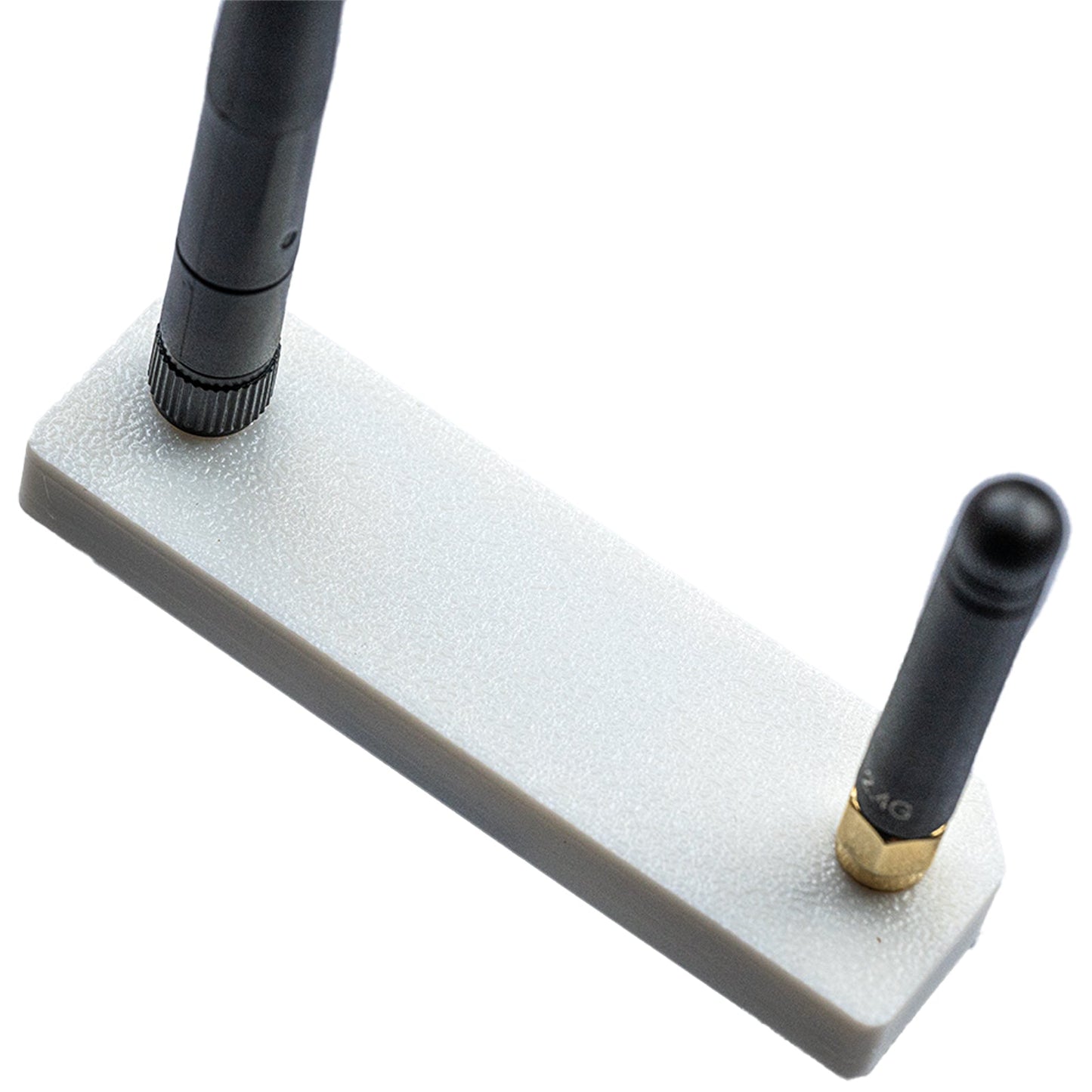

Hydra RF 424 for Cardputer ADV - CC1101 + nRF24L01+ 433 MHz
Hydra RF 424 for Cardputer ADV - CC1101 + nRF24L01+ 433 MHz
Regular price
$32.99 USD
Regular price
$45.98 USD
Sale price
$32.99 USD
Shipping calculated at checkout.
Couldn't load pickup availability
// 01 · HOW IT WORKS
Two radios. One Cardputer. No physical band switch.
Hydra RF connects through the Cardputer ADV expansion header. Bruce selects the active transceiver while the module’s hardware mutual-exclusion circuit isolates the other radio.
Cardputer ADV
Host interface, screen and Bruce firmware controls.
→
Hydra switching logic
Software-directed hardware selection without jumpers.
→
CC1101 / nRF24L01+
Sub-GHz work or 2.4 GHz development from one module.
// 02 · BUILT FOR THE WORKFLOW
The useful hardware is already on the board.
Frequency-specific RF hardware
Choose 433 MHz or 915 MHz at purchase; each variant is tuned for its stated Sub-GHz band.
Stable power architecture
A dedicated low-noise regulator and local capacitance support RF transmit bursts.
Clean Cardputer ADV fit
Uses the native expansion header with no soldering or loose jumper wires.
// 03 · CHOOSE THE RIGHT REGIONAL VERSION
433, 868 and 915 MHz are separate Hydra RF hardware versions.
Select a model to open the matching product or variant. All three versions also include nRF24L01+ 2.4 GHz.
Hydra RF 424
CC1101 433 MHz + nRF24L01+ 2.4 GHz
433 MHz · Current product- Common in Asia and selected EU applications
- Original SKU: CP-HYDRA-424
- Select 433.00 MHz in Bruce
CC1101 868 MHz + nRF24L01+ 2.4 GHz
EU / UK version- Independent 868 MHz product
- Original SKU: CP-HYDRA-824
- Select 868.35 MHz in Bruce
CC1101 915 MHz + nRF24L01+ 2.4 GHz
US / Canada / Australia- 915 MHz hardware version
- Original SKU: CP-HYDRA-924
- Select 915.00 MHz in Bruce
Confirm permitted frequencies and operating limits for your country before transmitting.
// 04 · CARDPUTER ADV RF ACCESSORY COMPARISON
Hydra RF vs M5Stack Cap LoRa-1262 for Cardputer ADV
These Cardputer ADV accessories solve different wireless problems. PINGEQUA Hydra RF combines CC1101 Sub-GHz and nRF24L01+ 2.4 GHz for Bruce firmware RF workflows. The official M5Stack Cap LoRa-1262 combines an SX1262 LoRa radio with GNSS for Meshtastic, long-range messaging and positioning.
| Capability | PINGEQUA Hydra RF | M5Stack Cap LoRa-1262 |
|---|---|---|
| Primary radios | CC1101 + nRF24L01+ | SX1262 + GNSS receiver |
| Frequency focus | 433, 868 or 915 MHz hardware variant + 2.4 GHz | 868–923 MHz LoRa range |
| LoRa / Meshtastic | Not sold as a LoRa or Meshtastic module | Designed for LoRa and mesh communication |
| 2.4 GHz nRF24 | Included | Not included |
| GNSS / GPS | Not included | Integrated multi-constellation GNSS |
| Best fit | Bruce, CC1101 Sub-GHz and nRF24 development | Long-range LoRa messaging, mesh and positioning |
Choose Hydra RF when you need a Cardputer ADV CC1101 + nRF24 module for Bruce firmware. Choose the official M5Stack Cap LoRa-1262 when you need a Cardputer ADV LoRa module for Meshtastic, long-range mesh communication or GNSS positioning.
Technical references: Hydra RF documentation · M5Stack Cap LoRa-1262 specifications · official Cardputer Mesh Kit Meshtastic guide
// 05 · SETUP
Flash, auto-configure, select your frequency.
The same Hydra GPIO mapping is used across 424, 824 and 924. Only the final CC1101 frequency selection changes.
1
Open the Cardputer Bruce flasher
Use Chrome or Edge on desktop and connect Cardputer ADV with a USB data cable.
2
Flash and apply the Hydra configuration
The flasher installs Bruce and writes the Hydra pin configuration automatically.
3
Select the matching CC1101 frequency
Choose 433.00 MHz for Hydra RF 424 or 915.00 MHz for Hydra RF 924, then restart.
// 06 · SPECIFICATIONS
The numbers that matter.
Host platformM5Stack Cardputer ADV only
Sub-GHz radioTexas Instruments CC1101
2.4 GHz radionRF24L01+ with PA/LNA
Band options433 MHz / 915 MHz
InterfaceNative SPI/GPIO header
SwitchingHardware mutual-exclusion
FirmwareBruce with brucepins.conf
SolderingNot required
// 07 · HONEST LIMITS
Know what this module is—and what it is not.
Cardputer ADV onlyNot compatible with the original Cardputer V1.1 or earlier Cardputer versions.
Not a LoRa/GPS moduleChoose Cap LoRa-1262 if LoRa, Meshtastic or GNSS is your primary requirement.
Frequency is hardware-specificSoftware cannot turn a 433 MHz 424 into a 915 MHz 924.
Host device not includedThe product contains the Hydra RF module and stated accessories, not Cardputer ADV.
// 08 · CARDPUTER ADV RF MODULE FAQ
Hydra RF, LoRa Cap and Meshtastic: quick answers
Direct answers for buyers comparing Cardputer ADV accessories, CC1101 modules and the official M5Stack LoRa Cap.
What is the best RF accessory for M5Stack Cardputer ADV?
It depends on the radio workflow. Choose PINGEQUA Hydra RF for CC1101 Sub-GHz plus nRF24L01+ 2.4 GHz functions in Bruce firmware. Choose the official M5Stack Cap LoRa-1262 for LoRa, Meshtastic and GNSS positioning. Neither product is a complete replacement for the other.
What is the difference between Hydra RF and M5Stack Cap LoRa-1262?
Hydra RF uses CC1101 and nRF24L01+ radios and is designed around Bruce firmware RF workflows. M5Stack Cap LoRa-1262 uses an SX1262 LoRa radio and an integrated GNSS receiver for long-range LoRa communication, Cardputer Mesh Kit and Meshtastic applications.
Does Cardputer ADV support LoRa and Meshtastic?
Cardputer ADV can use LoRa and Meshtastic when paired with compatible SX1262 hardware such as the official M5Stack Cap LoRa-1262. Hydra RF is not an SX1262 LoRa module and is not sold as a Meshtastic accessory.
What is the difference between CC1101 and SX1262?
CC1101 is a configurable Sub-GHz transceiver used for a range of low-power RF protocols. SX1262 is a LoRa-capable Sub-GHz transceiver commonly used for long-range LoRa and Meshtastic communication. The chips serve different protocol and firmware ecosystems.
What is the difference between Hydra RF 424 and Hydra RF 924?
Hydra RF 424 uses frequency-specific CC1101 hardware for 433 MHz. Hydra RF 924 uses frequency-specific CC1101 hardware for 915 MHz. Both versions also include nRF24L01+ 2.4 GHz capability and work with M5Stack Cardputer ADV.
Does Hydra RF require soldering or manual wiring?
No. Hydra RF connects to the Cardputer ADV expansion header. Install Bruce firmware and apply the Hydra configuration before first use.
Can a 433 MHz Hydra RF 424 become a 915 MHz Hydra RF 924 in software?
No. The CC1101 frequency version is determined by the RF hardware. Select the model that matches the intended frequency and permitted local use.
PINGEQUA Hydra RF documentation: GitHub setup, pin reference and troubleshooting.
